Pressure sensor

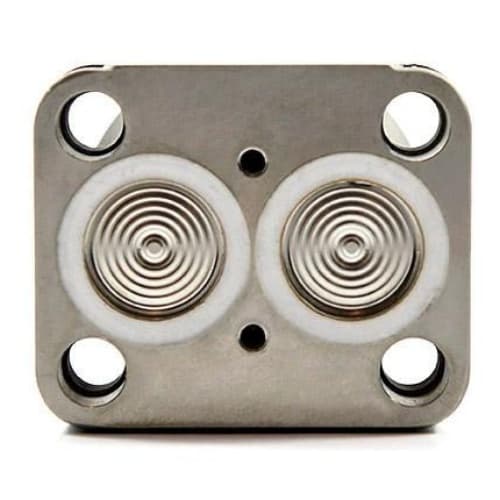

America Original 316L pressure transmitter pressure sensor for Rosemount 3051CD1A24A1AHR5B4



Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,
Gage, and Absolute pressure measurement. The Coplanar Platform enables seamless
integration with manifolds, flow and level solutions.





Model	Transmitter type
3051C(1)	Coplanar Pressure Transmitter
Measurement type
D	Differential
G	Gage
A2	Absolute

	Differential (3051CD)	Gage (3051CG)	Absolute (3051CA)
1	–25 to 25 inH2O (-62,16 to 62,16 mbar)	–25 to 25 inH2O (-62,16 to 62,16 mbar)	0 to 30 psia (0 to 2,06 bar)
2	–250 to 250 inH2O (-621,60 to 621,60 mbar)	–250 to 250 inH2O (-621,60 to 621,60 mbar)	0 to 150 psia (0 to 10,34 bar)
3	–1000 to 1000 inH2O (-2,48 to 2,48 bar)	–393 to 1000 inH2O (-0,97 to 2,48 bar)	0 to 800 psia (0 to 55,15 bar)
4	–300 to 300 psi (-20,68 to 20,68 bar)	–14.2 to 300 psi (-0,97 to 20,68 bar)	0 to 4000 psia (0 to 275,79 bar)
5	–2000 to 2000 psi (-137,89 to 137,89 bar)	–14.2 to 2000 psi (-0,97 to 137,89 bar)	N/A
0(3)	–3 to 3 inH2O (-7,46 to 7,46 mbar)	N/A	N/A
