Rosemount 8700 Magnetic Đồng hồ đo lưu lượng Transmitters

Magnetic Flowmeter

Magnetic Flowmeter Rosemount 8700 Magnetic Flowmeter Transmitters

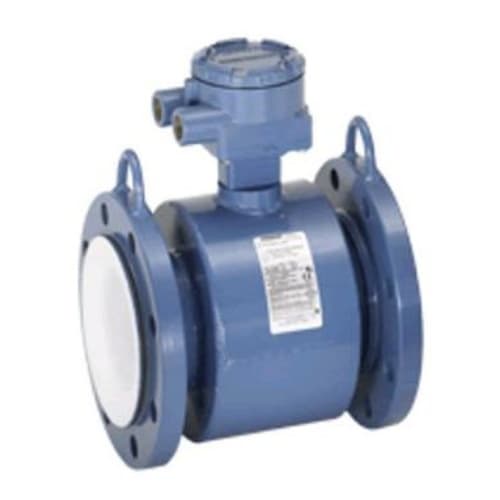

Firstly, Rosemount 8700 series flanged flowtube sensors fabricate from stainless and carbon steel and welded to provide a hermetic seal that protects against moisture and other contaminants.

The sealed housing pn the Rosemount 8705 flanged flowtube ensures maximum flowtube sensor reliability by protecting all internal components and wiring from the most hostile environments.

Rosemount magmeter systems use pulsed DC technology that provides continuous automatic zeroing to compensate for variations in the process environment. Therefore, process liquid must have a conductivity of 5 microsiemens/cm (5 micromhos/cm) or greater.

Rosemount 8700 series flowtubes are interchangeable with both the 8712D and 8732 flow transmitters. And system accuracy is maintained regardless of line size or optional features. So, each Rosemount 8705 flanged flowtube nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator interface or the HART Communicator – depending on model.

First, industry leading performance with standard reference accuracy of 0.25% of rate with an optional High Accuracy of
0.15% of rate
Second, Rosemount 8732 Transmitter – Integral-mount design, backlit display, and explosion-proof housing. Available with HART®, FOUNDATION™ fieldbus, or PROFIBUS PA, Device Diagnostics, and Smart™ Meter Verification to improve
reliability and performance
Third, Rosemount 8712 HART Transmitter – available with Device Diagnostics including Smart Meter Verification to
improve reliability and performance. Then, quick setup with easy-to-use local operator interface
Then, Rosemount 8712H/8707 High-Signal System – Pulsed DC solutions for the most demanding flow measurement
applications
Moreover, Rosemount 8705 Flanged sensor – Fully welded sensor for maximum protection
What’s more, Rosemount 8711 Wafer sensor – Economical, compact, and lightweight sensor, provided with alignment spacers for
easy installation
Importantly, Rosemount 8721 Hygienic sensor – Specifically designed for food, beverage, and life sciences applications
