Rosemount 8700 Magnetic Đồng hồ đo lưu lượng 8705NSA030S1W0NQ4

Rosemount 8700 Magnetic Flowmeter

• Industry leading performance with standard reference accuracy of 0.25% of rate with an optional High Accuracy of 0.15% of rate
• 8732 Transmitter – Integral-mount design, backlit display, and explosion-proof housing. Available with HART®, FOUNDATION™ fieldbus, or PROFIBUS PA, Device Diagnostics, and Smart™ Meter Verification to improve
  reliability and performance
• 8712 HART Transmitter – available with Device Diagnostics including Smart Meter Verification to
  improve reliability and performance. Quick setup with easy-to-use local operator interface
• 8712H/8707 High-Signal System – Pulsed DC solutions for the most demanding flow measurement
  applications

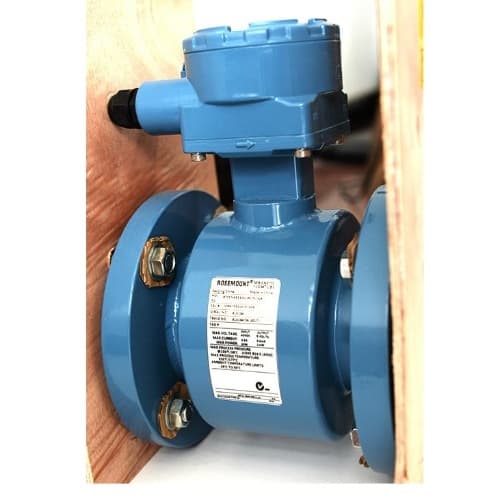

• 8705 Flanged sensor – Fully welded sensor for maximum protection
• 8711 Wafer sensor – Economical, compact, and lightweight sensor, provided with alignment spacers for
  easy installation
• 8721 Hygienic sensor – Specifically designed for food, beverage, and life sciences applications

Rosemount 8705 Sensors are interchangeable with 8732, and 8712 Transmitters. Rosemount 8707 High-Signal Sensors are interchangeable with 8732, 8712, and 8712H High-Signal Transmitters. System accuracy is maintained regardless of line
size or optional features. Each sensor nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator Interface (LOI) or the Field Communicator. In a FOUNDATION fieldbus environment, the
8732 can be configured using the DeltaV™ fieldbus configuration tool or another FOUNDATION fieldbus configuration device. No further calibration is necessary.
