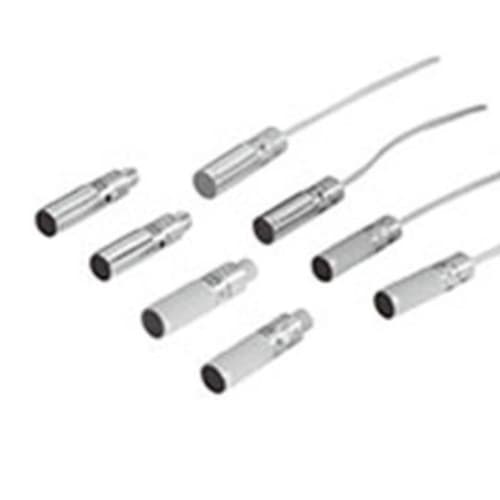

Omron Proximity Sensor E2KQ-X Series





Features:
Excellent chemical resistance, oil resistance (fluororesin

housing)

Adjust the distance according to the detection object

(sensitivity knob)

species:
Sensors

Shape Detection Distance Output Type Action Type Model

Unshielded

474_lu_1_1

M18 10mm
[6 ~ 10mm *] DC

3 lines
NPN NO E2KQ-X10ME1 2M

NC E2KQ-X10ME2 2M

Rating / Performance:

Item Model E2KQ-X10ME1 E2KQ-X10ME2

Standard detection distance * 1 10mm

Detection range of variable range 6 ~ 10mm

Should be detected by the distance of 4 to 20%

Can detect object conductor and dielectric body

Standard detection of objects to ground metal plate 50 × 50 × 1mm

Response frequency 35Hz

Power supply voltage (using voltage range) DC12 ~ 24V

Pulsation (p-p) 10% or less (DC10 ~ 30V)

Current consumption below 15mA

Control output switch capacity 100mA

Residual voltage 1.5V or less (load current 100mA, wire

length 2m)

Indicator light (red)

Action mode (near detection of object) * 2 NO NC

Ambient temperature range Operating: -10 ~ +55 ℃, save: -25

~ +55 ℃ (no icing, condensation)

Temperature of the temperature range of -10 ~ +55 ℃, +23

℃, the detection distance of ± 15%

The voltage is within ± 20% of the rated power supply

voltage, the rated power supply voltage, the detection

distance of ± 2%

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage AC500V 50 / 60Hz 1min charging part

between the whole and the shell

Vibration (durable) 10 ~ 55Hz double amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 3 times



Material shell, detection of fluorine resin

Tighten nuts

Cable PVC

Accessories Adjustable screwdriver, instruction manual

* 1. The numbers in the table are the detection distance of

the standard detection object. For other materials please

refer to the sample “Characteristic data”.

* 2. For details, refer to the timing diagram of the “Input

Output Section Circuit Diagram” on the sample.
