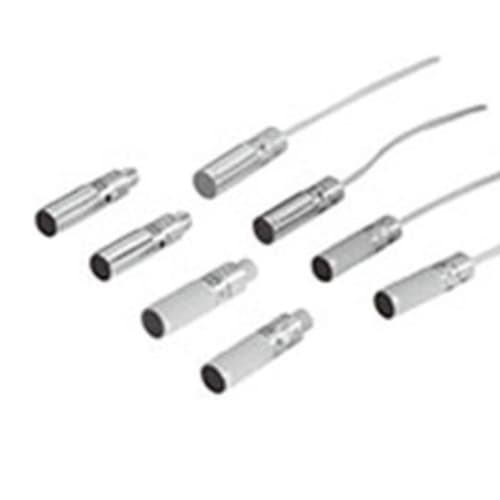

Omron Proximity Sensor E2EZ Series

Features:

Adhesion of aluminum, cast iron and other chips will not cause malfunction, only the detection of objects

With SmartClick connector relay type
species:
Ontology

Wire lead type

Shape Detection Distance Output Type Model
Action mode
NO NC
shield
454_lu_1_1
M12 2mm DC 2-wire E2EZ-X2D1-N 2M E2EZ-X2D2-N 2M
M18 4mm DC 3-wire NPN E2EZ-X4C1 2M –
DC 2-wire E2EZ-X4D1-N 2M E2EZ-X4D2-N 2M
AC 2-wire E2EZ-X4Y1 2M –
M30 8mm DC 3-wire NPN E2EZ-X8C1 2M –
DC 2-wire E2EZ-X8D1-N 2M E2EZ-X8D2-N 2M
AC 2-wire E2EZ-X8Y1 2M
SmartClick connector relay type (M12)

Shape Detection Distance Output Type Model
Action mode
NO NC
shield
454_lu_2_1
M12 2mm DC 2-wire type ③-④ Pin configuration E2EZ-X2D1-M1TJ 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X2D1-M1TGJ 0.3M –
M18 4mm DC 2-wire type ③-④ Pin configuration E2EZ-X4D1-M1TJ 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X4D1-M1TGJ 0.3M –
M30 8mm DC 2-wire type ③-④ Pin configuration E2EZ-X8D1-M1TJ 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X8D1-M1TGJ 0.3M –
Connector relay type (M12)

Shape Detection Distance Output Type Model
Action mode
NO NC
shield
454_lu_3_1
M12 2mm DC 2-wire type ③-④ Pin configuration E2EZ-X2D1-M1J 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X2D1-M1GJ 0.3M –
M18 4mm DC 2-wire type ③-④ Pin configuration E2EZ-X4D1-M1J 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X4D1-M1GJ 0.3M –
M30 8mm DC 2-wire ③-④ Pin Configuration E2EZ-X8D1-M1J 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X8D1-M1GJ 0.3M –
Accessories (sold separately)

Sensor I / O connector (M12, unilateral connector)

(Connector relay type necessities) are not included in the sensor accessories, so be sure to order.
Shape wire length sensor I / O connector type Applicable proximity sensor model
Straight
454_lu_4_1
2m XS2F-D421-DD0 E2EZ-X □ D1-M1J
5m XS2F-D421-GD0
L type
454_lu_4_2
2m XS2F-D422-DD0
5m XS2F-D422-GD0
Straight
454_lu_4_1
2m XS2F-D421-DA0-F E2EZ-X □ D1-M1GJ
5m XS2F-D421-GA0-F
L type
454_lu_4_2
2m XS2F-D422-DA0-F
5m XS2F-D422-GA0-F
SmartClick connector is linear
454_lu_4_3
2m XS5F-D421-D80-F E2EZ-X □ D1-M1TJ
E2EZ-X □ D1-M1TGJ
5m XS5F-D421-G80-F
Mounting brackets
Protective cover
Anti-sputtering protective cover

For more information, see the catalog of Y92 □
