proximity sensor

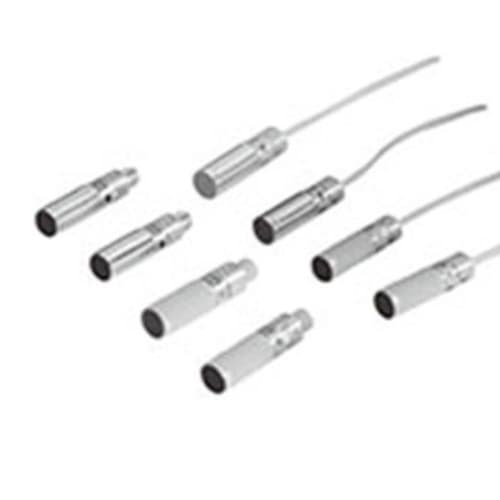

Omron proximity sensor E2EQ series



Features:
Excellent splash resistance

New long distance series. The longest detection distance of 15mm

With SmartClick connector relay type
species:
Ontology

Wire lead type

Long distance type

Shape Detection Distance Output Type Action Mode Model
shield
452_lu_1_1
M12 4mm DC 2-wire
(No polarity) NO E2EQ-X4X1 2M
M18 8mm E2EQ-X8X1 2M
M30 15mm E2EQ-X15X1 2M
Standard type

Shape Detection Distance Output Type Action Mode Model
shield
452_lu_2_1
M12 3mm DC 2-wire NO E2EQ-X3D1 2M
M18 7mm E2EQ-X7D1 2M
M30 10mm E2EQ-X10D1 2M
SmartClick connector relay type (M12)

Long distance type

Shape Detection Distance Output Type Action Mode Model
shield
452_lu_3_1
M12 4mm DC 2-wire (Promise
) ③-④ pin configuration NO E2EQ-X4X1-M1TJ 0.3M
M18 8mm E2EQ-X8X1-M1TJ 0.3M
M30 15mm E2EQ-X15X1-M1TJ 0.3M
Standard type

Shape Detection Distance Output Type Action Mode Model
shield
452_lu_4_1
M12 3mm DC 2-wire type ①-④ Pin configuration NO E2EQ-X3D1-M1GJ 0.3M
M18 7mm E2EQ-X7D1-M1GJ 0.3M
M30 10mm E2EQ-X101-M1GJ 0.3M
Connector relay type (M12)

Long distance type

shield
452_lu_5_1
M12 4mm DC 2-wire type ③-④ Pin configuration NO E2EQ-X4X1-M1J 0.3M
M18 8mm E2EQ-X8X1-M1J 0.3M
M30 15mm E2EQ-X15X1-M1J 0.3M
Standard type

Shape Detection Distance Output Type Action Mode Model
shield
452_lu_6_1
M12 3mm DC 2-wire type ①-④ Pin configuration NO E2EQ-X3D1-M1TGJ 0.3M
M18 7mm E2EQ-X7D1-M1TGJ 0.3M
M30 10mm E2EQ-X10D1-M1TGJ 0.3M
