OMRON Photoelectric Sensors E3Z-GN/GP series
OMRON Photoelectric Sensors E3Z-GN/G series

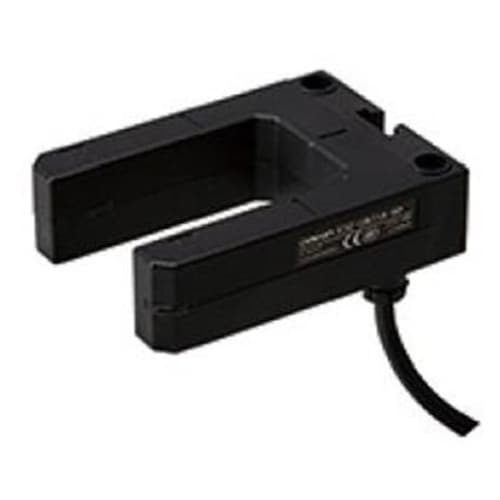

OMRON Photoelectric Sensors E3Z-GN/GP series Slot type photoelectric sensor Horizontal detection with no fear of stability.
Features:
Good environmental resistance
Using a unique optical design, anti-ambient light up to 100kLx.
Protection structure to IP67, waterproof and dustproof.
No stability detection of external disturbances
Infrared bar beam design, anti – foreign body blocking ability. Reduce the dust, dirt cover and produce the chance of malfunction.
Security considerations
CE and CCC * certified.
* E3Z-G □□□□ 60V products with reverse protection, load short circuit protection
E3Z-GN/GP series
Form E3Z-GN11A E3Z-GN11B E3Z-GP11A E3Z-GP11B
Detection width: 30mm
Repeat accuracy: 0.5mm
Should be poor: 1mm
Peripheral Illumination: 100kLx
Response speed: 1ms
Light source: infrared light 850nm
Power supply voltage: 10 ~ 30V
Consumption current: 30mA
Output current: 100mA
Output mode: NPN PNP
Operation mode: L / ON D / ON L / ON D / ON
Protection circuit: power reverse protection, output short circuit protection, mutual interference prevention function
Indicator: Power indication / action indication
Temperature range: -25 ~ 60 ℃
Protection structure: IP67
Continuation method: wire lead out 0.5m / 2m / 3m
Related Certification: CE (EN12015 / EN12016)
