Germany mass flow meter is for low flow measurement

Germany mass flow meter

Germany mass flow meter is for low flow measurement

• Brand :Germany Krohne

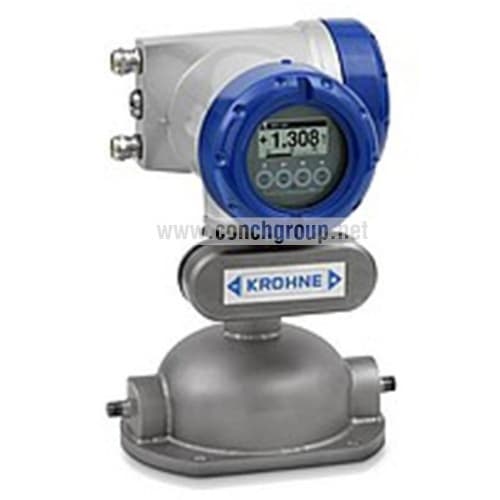

• Model: mass flowmeter OPTIMASS 3000 for air water oil flow indicator
• Process temperature:-40 to +150°C
• Measuring tube material:Stainless Steel 316L
• Temperature:20°C / 68°F
• Protection Class: ip67
• Quality: New and original for mass flow meter.
• First choice for low flow applications
• Certified secondary pressure containment
• A common footprint for all three sizes, in Hastelloy ® or Stainless Steel
• Measuring system
• Measuring principle: Coriolis mass flow
• Application range: Mass flow and density measurement of fluids, gases
• Measured values: Mass, density, temperature
• Calculated values: Volume, referred density, concentration, velocity
• Mass
• Liquid: ±0.1% of actual measured flow rate + zero stability
• Gas: ±0.5% of actual measured flow rate + zero stability
• Repeatability: Better than 0.05% plus zero stability (includes the combined effects of
  repeatability, linearity and hysteresis)
• Density
• Accuracy: ±2 kg/m3 / ±0.13 lbs/ft3
• Measuring range: 400…3000 kg/m3 / 25…187 lbs/ft3
• On site calibration:±0.5 kg/m3 / ±0.033 lbs/ft3
• Temperature
• Accuracy:±1°C / ±1.8°F
