KEYENCE Proximity Sensors EZ series three-wire self contained amplifier proximity sensors.

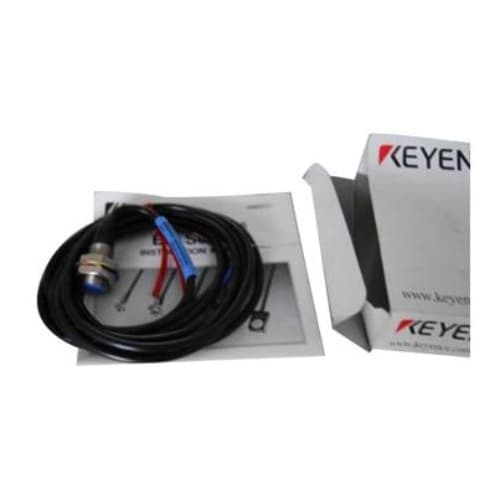

KEYENCE Proximity Sensors EZ series EZ-12M

Model

EZ-12M

Type

Shielded

Shape

M12

Detecting distance

2.5 mm 0.10″ ±10%

Detectable object

Ferrous metals (see Characteristics for nonferrous metals)

Standard target
(iron, t=1mm 0.04″)

12 x 12 mm 0.47″ x 0.47″

Hysteresis

10% max. of detecting distance

Response frequency

600 Hz

Operation mode

N.O./N.C.

Temperature characteristics

±10% max. of detecting distance at +23°C 73.4°F, within -25 to +70°C -13 to 158°F

Control output

NPN open collector 100 mA max. (40 V max.), Residual voltage: 1 V max.

Cable length

2 m 6.6′

Rating

Power voltage

12 to 24 VDC ±10%

Current consumption.

13 mA max.

Environmental resistance

Enclosure rating

IP67

Operating temperature range

-25 to +80°C -13 to 176°F, No freezing

Operating ambient humidity

35 to 95%, No condensation

Vibration

10 to 55 Hz, 1.5 mm 0.06″ double amplitude in X, Y, and Z directions, 2 hours

Shock resistance

500 m/s² 1640.4′ in X, Y, and Z directions, 3 times respectively

Case material

Nickel-plated brass

Accessories

Screw nut x 2,
toothed washer x 1

Weight

Approx. 65 g
