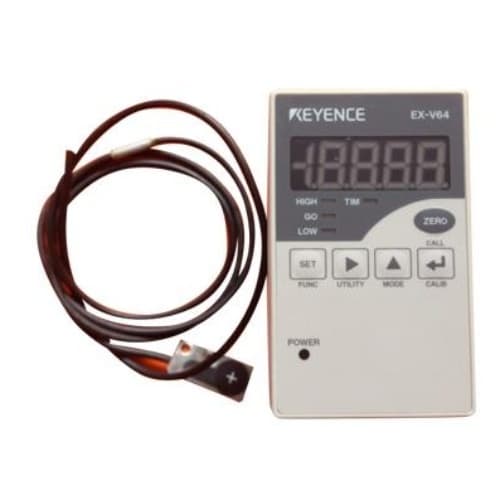

KEYENCE Proximity Sensors EX-V series EX-V64E

SKU:1351-10380

KEYENCE Proximity Sensors EX-V series

KEYENCE Proximity Sensors EX-V series high-speed, high-accuracy, digital inductive displacement sensors.

Features:

Automatic Bottom-dead-center measurement mode, Vibration measurement mode,Gap measurement mode

2 color LED digital display for easy setup

Environmental resistant IP-67 sensor head

KEYENCE Proximity Sensors EX-V series EX-V64E

Model		EX-V64E
Type		Controller
Shape		14 x 30 x 4.8 mm 0.55″ x 1.18″ x 0.19″ Thin profile
Measuring range		0 to 4 mm 0.16″
A/D converting system		Sequential conversion
Display range		-19,999 to +19,999
Linearity		±0.3% of F.S.
Resolution (No. of averaging measurements: 64)		1μm
Sampling rate		40,000 samplings max./sec. ^*1
Display speed		20 times/sec. (2-color, 7-segment LED)
Display power		7-segment 2-color LED
Over-range alarm		±FFFF is displayed.
Control input	Timing input	NPN open-collector or non-voltage contact signal
	Reset input
	Auto-zero input
	Judgment output: Inhibit input
	Synchronization/external settings input
Control output	Setting method	Upper/lower 2-level setting x 4 patterns (selectable)
	Signal	NPN open-collector (HIGH, GO and LOW): 100 mA max. (40 V max.)
	Response time	0.075 ms (at maximum speed)
	OFF-delay time	60 ms (ON/OFF selectable)
	Strobe output	NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max. (N.O.)
	Alarm output	NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max. (N.C.)
Analog output voltage	Output voltage	±0.5 V
	Impedance	100 Ω
	Response time	0.075 ms (at maximum speed)
Temperature characteristics		0.07% of F.S./°C ^*2
Major functions		FLL, digital filter, auto zero, offset, calculation, measurement mode (15 types), judgment value memory (4 sets), decimal point shift, display digit changing, display of various errors, etc.
Rating	Current consumption.	240 mA or less
	Power voltage	24 VDC ±10%, Ripple (P-P): 10% max.
Environmental resistance	Operating temperature range	0 to +50°C 32 to 122°F, 35 to 80%RH (no condensation)
	Operating ambient humidity	35 to 85% RH (No condensation)
	Vibration	10 to 55 Hz, 1.5 mm 0.06″ double amplitude for 2 hours in each of the X, Y, and Z directions
Weight		Approx 235 g
