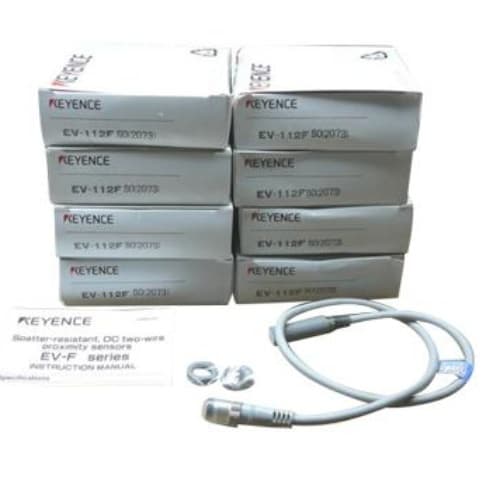

KEYENCE Proximity Sensors EV-F series EV-112FSO(2073)

KEYENCE Proximity Sensors EV-F series EV-112FSO(2073)

Model: EV-112FSO (2073) * 1
Detection distance: 2.5 mm0.098 “± 10%
Detectable object: ferrous metal (see non-ferrous metal characteristics)
Standard target: (iron, t = 1mm × 0.04 “)
Hysteresis: up to 15% of the distance
Response frequency: 600 Hz
Temperature characteristics: max ± 10% at 23 ° C Detection distance 73.4 ° F,
Between -25 and + 70 ° C -13 to + 158 ° F
Control output (switching capacity): 5 ~ 200mA
Protection circuit: reverse polarity, short circuit, surge voltage
Cable length: 2 meters 6.6 ‘
Power supply voltage: 12 to 24 VDC, ripple (p-p) up to 20%.
Current consumption (leakage current): maximum 1.0 mA, residual voltage: maximum 3.6 V. (2 m 6.6 ‘cable)
Residual voltage: up to 3.6 V (2 m 6.6 ‘cable)
Shell class: IP67
Operating temperature range: -25 to +80 ° C -13 to 176 ° F without freezing
Working environment humidity: 35 ~ 95%, no condensation
Vibration: 10 to 55 Hz, 1.5 mm 0.06 “double amplitude, 2 hours in X, Y and Z directions, respectively
Impact resistance: 500 m / s2 in the X, Y, and Z directions, respectively
Case Material: Fluorine Chemically Coated Brass
Weight: about 110 grams
