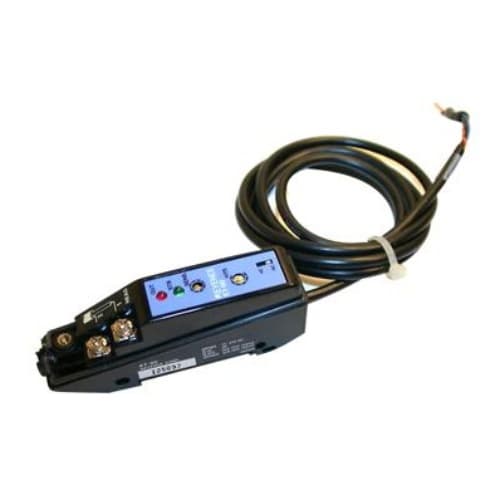

KEYENCE Proximity Sensors ET series suter small proximity sensors for non magnetic metals.

KEYENCE Proximity Sensors ET series ET-90

Model

ET-90

Type

Shielded

Detectable object

Nonferrous metals

Sensitivity adjustment

15-turn trimmer

Hysteresis adjustment

1-turn trimmer (240°), approx. 2 to 10% of detecting distance (variable)

Operation mode

N.O./N.C. (switch-selectable)

Temperature characteristics

+25 to -15% max. of detecting distance at 23°C 73.4°F,
within 0 to 50°C 32 to 122°F

Output

Control output

100 mA max. (40 V max.), Residual voltage: 1 V max.

Control output

Disconnection alarm output

Protection circuit

Reversed polarity, surge absorber

Indicator lamp

Output: Red LED, Stable operation: Green LED

Rating

Power voltage

12 to 24 VDC±10%

Current consumption.

45 mA max.

Environmental resistance

Operating temperature range

0 to 50°C 32 to 122°F, No condensation

Operating ambient humidity

35 to 85% RH (No condensation)

Vibration

10 to 55 Hz, 1.5 mm 0.06″ double amplitude in X, Y, and Z directions, 2 hours

Accessories

Dedicated mounting bracket, plastic screwdriver

Weight

Approx. 80 g (including 2m cable)
