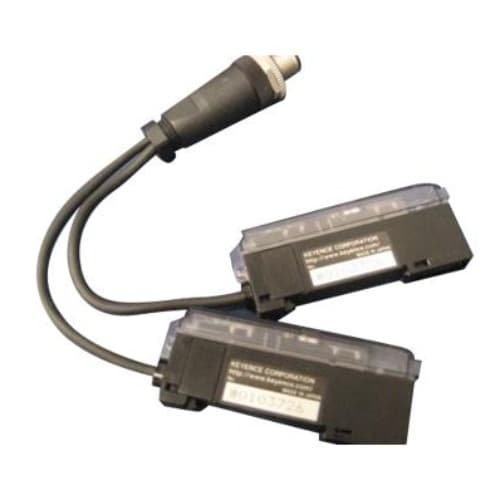

KEYENCE Proximity Sensors ES series separate amplifier proximity sensor/ Cảm biến tiệm cận.

KEYENCE Proximity Sensors ES series ES-M1

Model

ES-M1^*1

Type

One-line expansion system

Shape

Main unit

Operation mode

N.O./N.C. switch-selectable

Timer function

10-ms delay / timer OFF switchable^*2

Output

NPN

Output

Control output

NPN open collector 100 mA max. 40 V, residual voltage 1 V max.

Disconnection alarm output

NPN open collector 100 mA max.
40 V,
residual voltage 1 V or less^*3

Response time

1 ms max.

Temperature characteristics

Within ±8% of detecting distance at +23°C 73.4°F when within 0 to 50°C 32 to 122°F temperature range

Sensitivity adjustment

25-turn trimmer

Protection circuit

Reverse power connection protection, output overcurrent protection, output surge protection

Rating

Power voltage

12 to 24 VDC, ripple (P-P) 10% max.

Current/power consumption

25 mA max.

Environmental resistance

Operating temperature range

0 to 50°C 32 to 122°F ^*4

Operating ambient humidity

35 to 85% RH (No condensation)

Weight

Approx. 65 g (including nuts and 2-m 9.8′ cable)

^*1 The ES-M1(P)/M2(P) cannot be connected to the EH-422, 430, 440 or 290.
^*2 During N.O. operating configuration, the off delay timer is 10 ms. During N.C., the on delay timer is 10 ms.
^*3 Broken connection warning output is not available on the ES-M2 (P).
^*4 The ambient temperature changes according to the following conditions when expansion units are added. When adding units, always attach them to a DIN rail (metal plate) and set the output current to 20
mA or less.
1 to 10 expansion units: 0 to 50˚C 32 to 122˚F
11 to 16 expansion units: 0 to 45˚C 32 to 113˚F
