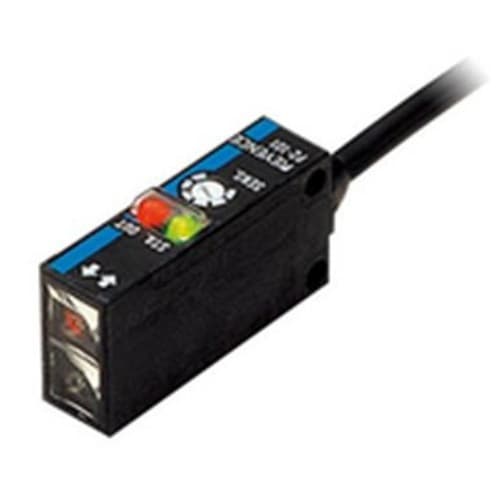

KEYENCE Photoelectric Sensors PZ-101 series

KEYENCE Photoelectric Sensors PZ-101 series

Model

PZ-101

Type

Focused-beam

Detecting distance

0 to 100 mm 3.94″

Light source

Visible red LED

Spot diameter

Approx5mm^□ (when detecting distance is 50 mm )、Approx7mm^□ (when detecting distance is 100 mm )

Detectable object

Transparent and opaque materials

Hysteresis

20% max. of detecting distance

Sensitivity adjustment

1-turn trimmer (240°)

Response time

1 ms max. (2 ms in alternate frequency mode)

Operation mode

LIGHT-ON/DARK-ON (selectable by wiring)

Indicator lamp

Output: Red LED, Stable operation: Green LED, Power supply: Red LED

Control output

NPN open-collector 100 mA max. (40 V max.)

Stability output

NPN: 50 mA (40 V) max.

Protection circuit

Reversed polarity, overcurrent protection

Rating

Power voltage

12 to 24 VDC ±10%

Current consumption.

30 mA max.

Environmental resistance

Enclosure rating

IP67

Operating ambientluminance

Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.

Operating temperature range

-20 to +55°C -4 to 131°F, No freezing

Operating ambient humidity

35 to 85%, No condensation

Vibration

10 to 55 Hz compound amplitude 1.5 mm 0.06″, 2 hours for each of X, Y, Z axis

Case material

Glass-fi ber reinforced plastic

Weight

Approx. 75 g
