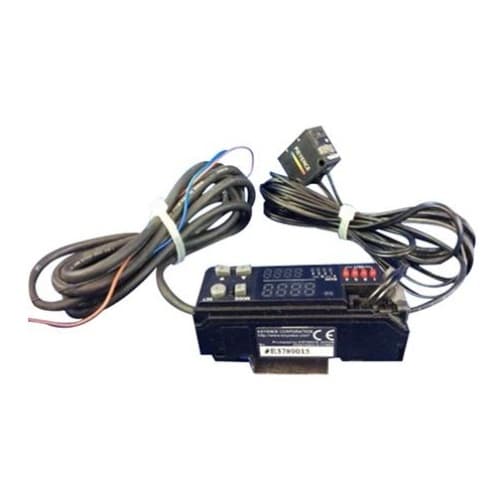

KEYENCE Photoelectric Sensors CZ-V20 series CZ-V21A Fiber Amplifier Sensor

SKU:1351-10020

KEYENCE Photoelectric Sensors CZ-V20 series

KEYENCE Photoelectric Sensors CZ-V20 series has Industry’s smartest RGB sensor with even higher stability, reliability and resolution. RGB digital amplifier produces 16-bit resolution for all 7 light combinations. Built in self-stabilizer monitors each LED.

KEYENCE Photoelectric Sensors

Model		CZ-V21A^*1
Output		NPN output
Main unit/expansion unit		Main unit
Response time		200 μs (HIGH SPEED)/1 ms (FINE)/4 ms (TURBO)/8 ms (SUPER)
Control output		NPN open-collector x 4 channels, 40 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.^*2
Protection circuit		Reverse-polarity protection, overcurrent protection, surge absorber
External tuning input, external bank switch input (C/C + I-mode), external shift input (super I-mode)		Input time: 20 ms min.
Timer function		Timer OFF/OFF-delay/ON-delay/One-shot, Timer time: 1 to 1000 ms adjustable (for each bank respectively)
Unit expansion		Up to 3 units (4 units total including the main unit)
Number of interference prevention units		0 for HIGH SPEED; 2 for FINE/TURBO/SUPER
Rating	Power voltage	24 VDC, Ripple (P-P): 10% max.
	Current consumption.	Normal mode：1.5 W (62.5 mA max.), Eco-mode：1 W (42.0 mA max.)
Environmental resistance	Operating temperature range	-10 to +55°C 14 to 131°F, No freezing^*3
	Vibration	10 to 55 Hz, 1.5 mm 0.06″ double-amplitude in X, Y, and Z directions, 2 hours respectively
Material		Housing, cover: Polycarbonate
Accessories		Mounting Fittings
Weight		Approx. 110 g
