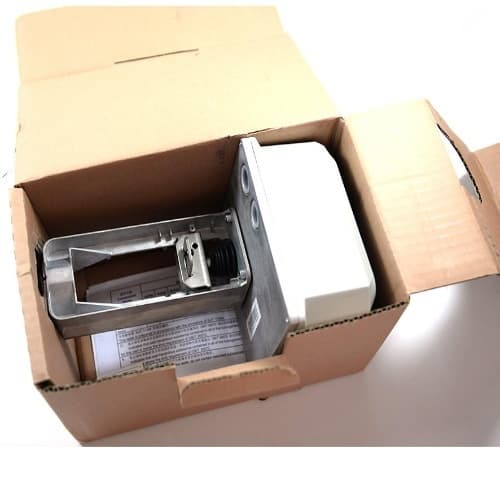

Honeywell ML7421B8012-E modulating electric valve actuator

electric valve actuator

electric valve actuator Honeywell ML7421B8012-E

FEATURES
Quick and easy installation
1. No separate linkage required
2.No adjustments
3. Force-limiting end switches
4.Manual operator
5.Synchronous motor
6.Corrosion-resistant design
7.Selectable 0…10 Vdc or 2…10 Vdc/
0…20 mA or 4…20 mA input signal
8.Position feedback signal
9.Direct or reverse-acting adjustable
10.Selectable stroke position on signal failure
11.Maintenance-free

Technical Parameters:
Working environment temperature: -10 ~ +50 ℃ (5 ~ 95% RH)
Storage Ambient temperature: -40 … + 70 ° C (5 … 95% RH)
Working medium temperature: up to 150 ° C (up to 220 ° C with high-temperature components)
model:
ML7421A8035-E
ML7421B8012-E
Supply voltage: 24 Vac ± 15%; 50/60 Hz
Power consumption: 14 VA
Input signal: 0 (2) Vdc
Rated travel: 20mm or 38mm
Running time (50 Hz): 1.9min or 3.5min
Thrust: ≥ 1800N
Weight: 2.0 Kg
