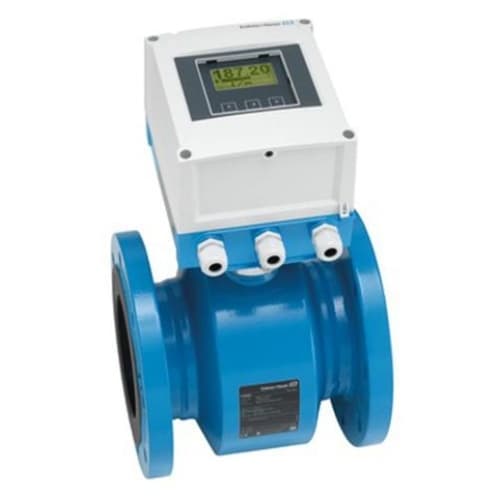

Electromagnetic Đồng hồ đo lưu lượng Endress Hauser Proline Promag W800 is the specialized sensor for all applications in the water industry.
Electromagnetic Flowmeter
Electromagnetic Flowmeter Endress Hauser Proline Promag W800 is the specialized sensor for all applications in the water industry.
- Brand :Endress Hauser
- Model: Endress Hauser Electromagnetic Flowmeter Proline Promag W800
- Diameter：DN 25 to 300 (1 to 12″)
- Measurement error：Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)
- Range:15 dm³/min to 2500 m³/h (4 to 11 000 gal/min)
- Pressure range: PN 40, Class 300, 20K
- Process Temperature: Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) - Output: Pulse/switch output (passive)
- Input:Status input
Endress Hauser Electromagnetic Flowmeter Proline Promag W800
Application
• The electromagnetic measuring principle is unaffected by pressure, temperature and flow profile
• Certified sensor for the most demanding water and wastewater applications
Device properties
• International drinking water approvals
• Degree of protection IP68 (Type 6P enclosure)
• Approved for custody transfer to MI-001/OIML R49
• Transmitter housing made of durable polycarbonate
• All in 1 housing incl. batteries & wireless modem
• Measuring intervals can be adapted individually
Your benefits
• For direct underground installation or permanent underwater use
• Secure, reliable long-term operation – robust and completely welded sensor
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• No power grid required – battery lifetime of up to 15 years
• Worldwide transmission of measured data and events via email and SMS – integrated GSM/GPRS modem
• Reliable data storage – integrated SD card
