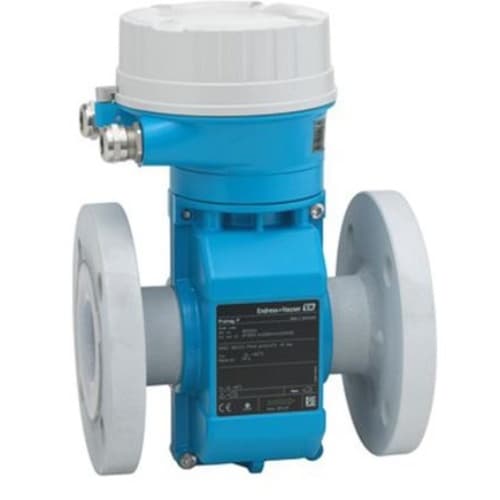

Endress Hauser Proline Promag P 100 Electromagnetic Đồng hồ đo lưu lượng
Electromagnetic Flowmeter
Electromagnetic Flowmeter Promag P 100 is dedicated for chemical and process applications with corrosive liquids and high medium temperatures.
- Brand :Endress Hauser
- Model: Endress Hauser Proline Promag P 100 Electromagnetic Flowmeter
- Diameter：DN 15 to 600 (½ to 24″)
- Measurement error：Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s) - Range:4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)
- Pressure range: PN 40, Class 300, 20K
- Process Temperature: Liner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PFA high‐temperature: –20 to +180 °C (–4 to +356 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F) - Output: 4‐20 mA HART (active)
Pulse/frequency/switch output (passive) - Input:None
Endress Hauser Proline Promag P 100 Electromagnetic Flowmeter
Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• Dedicated for chemical and process applications with corrosive liquids and high medium temperatures
Device properties
• Nominal diameter: max. DN 600 (24″)
• All common Ex approvals
• Liner made of PTFE or PFA
• Robust, ultra-compact transmitter housing
• Local display available
Your benefits
• Versatile applications – wide variety of wetted materials
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Space‐saving transmitter – full functionality on smallest footprint
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology™
