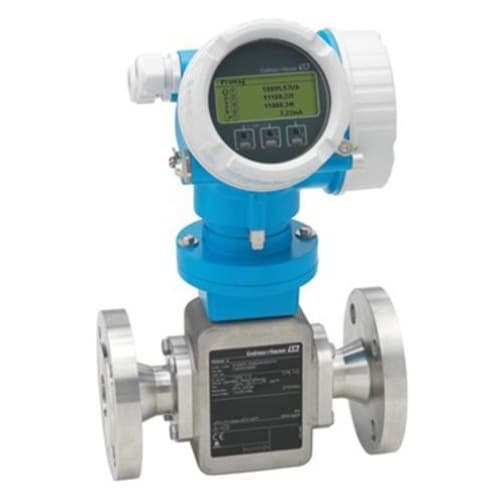

Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag H 200
Electromagnetic Flowmeter
Electromagnetic Flowmeter Endress Hauser Proline Promag H 200 offers in addition genuine, industry-compliant two-wire technology.
- Brand :Endress Hauser
- Model:Endress Hauser Electromagnetic Flowmeter Proline Promag H 200
- Diameter：DN 2 to 25 (¹⁄₁₂ to 1″)
- Measurement error：Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)
- Range:0.06 dm³/min to 300 m³/h (0.015 to 80 gal/min)
- Pressure range: PN 40, Class 150, 20K
- Process Temperature: –20 to +150 °C (–4 to +302 °F)
- Output: 4‐20 mA HART (passive)
Pulse/frequency/switch output (passive) - Input:None
Endress Hauser Electromagnetic Flowmeter Proline Promag H 200
Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• For the smallest flow quantities and demanding hygienic applications
Device properties
• Liner made of PFA
• Sensor housing made of stainless steel (3A, EHEDG)
• Wetted materials CIP, SIP cleanable
• Loop-powered technology
• Robust two-chamber housing
• Plant safety: worldwide approvals (SIL, Haz. area)
Your benefits
• Flexible installation concept – numerous hygienic process connections
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Convenient device wiring – separate connection compartment
• Safe operation – no need to open the device due to display
with touch control, background lighting
• Integrated verification – Heartbeat Technology™
