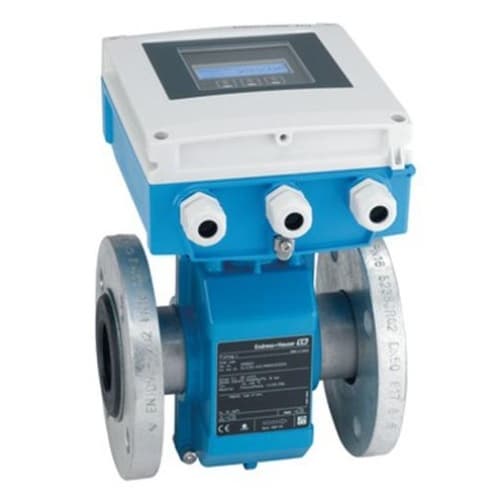

Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag D 400
Electromagnetic Flowmeter
Electromagnetic Flowmeter Endress Hauser Proline Promag D 400 is designed for all basic water applications where space is at a minimum.
- Brand :Endress Hauser
- Model:Endress Hauser Electromagnetic Flowmeter Proline Promag D 400
- Diameter：DN 25…100 1″…4″
- Measurement error：Volume flow: ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
- Range:9 to 4700 dm³/min (2.5 to 1250 gal/min)
- Pressure range: PN 16, Class 150, 10K
- Process Temperature: 0 to +60 °C (+32 to +140 °F)
- Output: 3 ouputs:
0‐20 mA/4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
Pulse/frequency output (passive)
Switch output (passive) - Input:Status input
Endress Hauser Electromagnetic Flowmeter Proline PromagD400
Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• For basic water applications; optimized for limited space and plastic pipe installations
Device properties
• Short installation length and low weight
• Integrated ground disks made of stainless steel
• International drinking water approvals
• Transmitter housing made of durable polycarbonate
• Same housing concept for compact/remote version
• Integrated data logger: measured values monitoring
Your benefits
• Easy, fast centering of the sensor – innovative housing construction
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Safe operation – no need to open the device due to display with touch control, background lighting
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology™
