Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag 55S

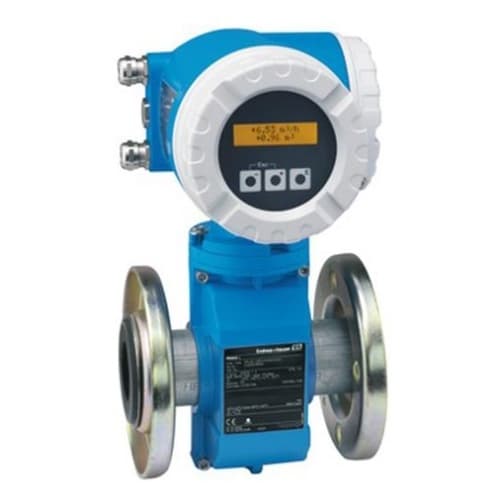

Endress Hauser Electromagnetic Flowmeter Proline Promag 55S

Application

• Chemical/mechanical pulps, paper pulp or wood pulp with solids contents up to 15 Vol.-%
• Fruit mashes, fruit concentrates and final products (salad dressings, soups with vegetable pieces)
• Slurries containing high amounts of sand or stone with an abrasive effect, e.g. ore slurry or mortar
• Chemically inhomogeneous fluids (e.g. additives)
• Thick wastewater sludges
• Flow measurement up to 9600 m/h
(42267 gal/min)
• Can be used up to +180 °C (+356 °F) and max. 40 bar (580 psi)
• Fitting lengths as per DVGW/ISO
Application-specific linings and electrodes:
• Natural rubber, hard rubber, polyurethane, PTFE or PFA linings
• Flat, bullet nose, neck, bow or brush electrodes

Your benefits

Promag measuring devices offer you cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions.
The Proline transmitter concept comprises of:
• High degree of efficiency due to the modular device and operating concept
• Software options for: electrode cleaning, advanced diagnostics, calculation of mass flow and solids content
The robust Promag S sensors offer:
• Universal devices, even for difficult fluids
• Excellent accuracy and repeatability
• High resistance to abrasion thanks to industryoptimized linings and measuring electrodes
• Optimum operational safety due to advanced, permanent self-diagnosis
• Simple installation and commissioning
• Insensitive to vibration
• No pressure loss
