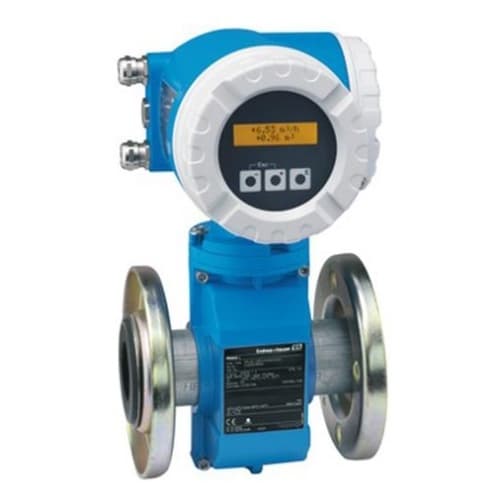

Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag 53L

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 53L offers highest accuracy in the most complex and demanding measuring tasks.

Brand :Endress Hauser
Model: Endress Hauser Electromagnetic Flowmeter Proline Promag 53L
Diameter：Lap joint flange; lap joint flange, stamped plate: DN 25 to 300 (1 to 12″)
Fixed flange: DN 350 to 2400 (14 to 90″)
Measurement error：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Range:9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d)
Pressure range: PN 16, Class 150
Process Temperature:Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Output: 4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency (passive)
Relay output
Switch output (passive)
Input:2 modular inputs:
Status input
0‐20 mA (aktiv)/4‐20 mA (aktiv/passiv)
