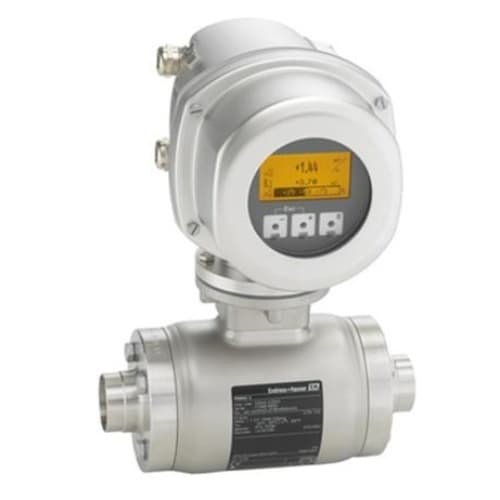

Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag 53H
Electromagnetic Flowmeter
Electromagnetic Flowmeter Endress Hauser Proline Promag 53H offers highest accuracy in the most complex and demanding measuring tasks.
Brand :Endress Hauser
Model: Endress Hauser Electromagnetic Flowmeter Proline Promag 53H
Diameter：”DN 2…100，1/12″…4″
Measurement error：± 0.2%
Range:0…282 m3/h
Pressure range: PN16…40
Process Temperature:-20…+150℃
Output: 4 … 20 mA pulse / frequency (active / passive), relays, status
Input:State input, current input
Endress Hauser Electromagnetic Flowmeter Proline Promag 53H
Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• For the smallest flow quantities and demanding hygienic applications
Device properties
• Liner made of PFA
• Sensor housing made of stainless steel (3-A, EHEDG)
• Wetted materials CIP, SIP cleanable
• Device in compact or remote version
Promag 53
• 4-line backlit display with touch control
• HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP
Your benefits
• Flexible installation concept – numerous hygienic process connections
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
Promag 53
• Quality – software for filling & dosing, density, electrode cleaning and also advanced diagnostics
• Easy calculation – bidirectional totalizers
• Automatic recovery of data for servicing
