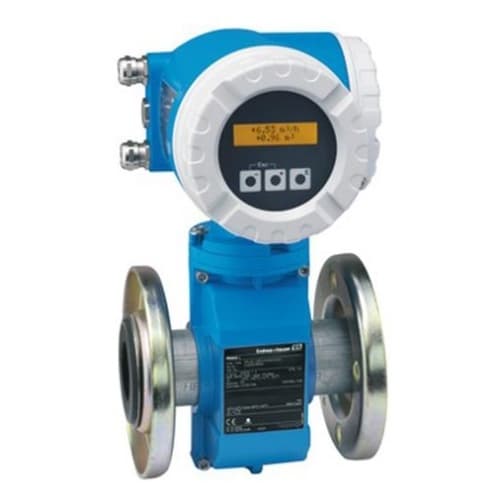

Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag 53E
Electromagnetic Flowmeter
Electromagnetic Flowmeter Endress Hauser Proline Promag 53E offers highest accuracy in the most complex and demanding measuring tasks.
Brand :Endress Hauser
Model: Endress Hauser Electromagnetic Flowmeter Proline Promag 53E
Diameter：DN 15 to 600 (½ to 24″)
Measurement error：Volume flow: ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Range:4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)
Pressure range: PN 40, Class 150, 20K
Process Temperature:–10 to +110 °C (+14 to +230 °F)
Output: 4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency (passive)
Relay output
Switch output (passive)
Input:2 modular inputs:
Status input
0‐20 mA (aktiv)/4‐20 mA (aktiv/passiv)
Endress Hauser Electromagnetic Flowmeter Proline Promag 53E
Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• Fully suitable for basic applications in the chemical and process industry
Device properties
• Nominal diameter: max. DN 600 (24″)
• Ex approvals for Zone 2
• Liner made of PTFE
• 4-line backlit display with touch control
• Device in compact or remote version
• HART, PROFIBUS DP/PA, Modbus RS485, FF, EtherNet/IP
Your benefits
• Cost-effective sensor – ideal solution for basic requirements
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Quality – software for filling & dosing, density, electrode cleaning and also advanced diagnostics
• Easy calculation – bidirectional totalizers
• Automatic recovery of data for servicing
