Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag 50W

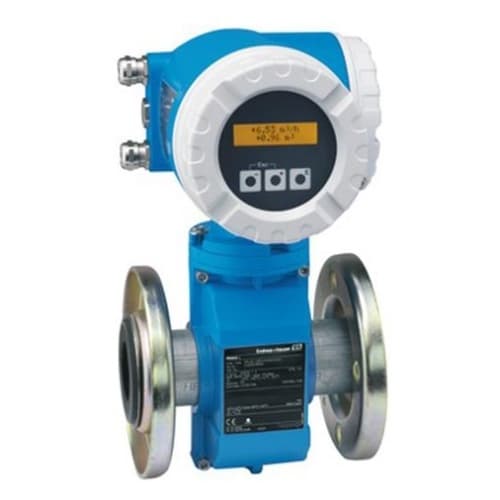

Endress Hauser Electromagnetic Flowmeter Proline Promag 50W

Application
Electromagnetic flowmeter for bidirectional measurement of liquids with a minimum
conductivity of 5 μS/cm:
• Drinking water
• Wastewater
• Sewage sludge
• Flow measurement up to 110000 m³/h
(484315 gal/min)
• Fluid temperature up to +80 °C (+176 °F)
• Process pressures up to 40 bar (580 psi)
• Lengths in accordance with DVGW/ISO
Application-specific lining of the measuring pipe from
polyurethane or hard rubber with the following drinking
water permissions:
• KTW
• WRAS
• NSF
• ACS
Approvals for hazardous area:
• ATEX
• IECEx
• FM
• CSA
• NEPSI
Connection to process control system:
• HART
• PROFIBUS DP/PA
• FOUNDATION Fieldbus
• MODBUS RS485

Your benefits
Promag measuring devices offer you cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions.
The uniform Proline transmitter concept comprises:
• Modular device and operating concept resulting in a higher degree of efficiency
• Software options for batching, electrode cleaning and for measuring pulsating flow
• High degree of reliability and measuring stability
• Uniform operating concept
The tried-and-tested Promag sensors offer:
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning
