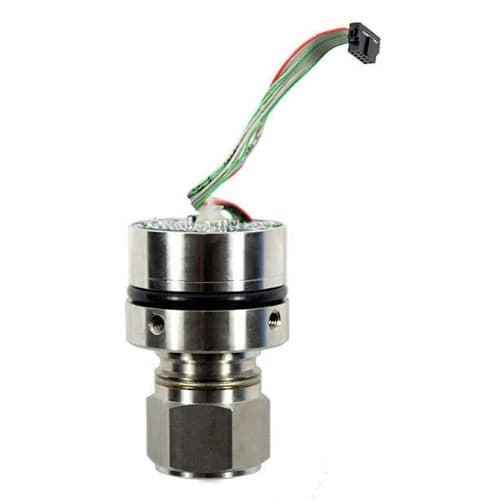

Pressure sensor/ Cảm biến áp suất SUS316L A differential diaphragm capsule Pressure sensor/ Cảm biến áp suất. Yokogaw sensor for EJA510A and EJA530A
pressure sensor
pressure sensor SUS316L A differential diaphragm capsule pressure sensor. Yokogaw sensor for EJA510A and EJA530A
| Measurement span
(capsule) |
L……….. | 0.5 to 10 kPa {50 to 1000 mmH 2 O} {2 to 40 inH 2 O} {5 to 100 mbar} | |
| M……….. | 1 to 100 kPa {100 to 10000 mmH 2 O} {4 to 400 inH 2 O} {10 to 1000 mbar} | ||
| H………… | 5 to 500 kPa { 0.05 to 5 kgf/cm 2 } {20 to 2000 inH 2 O} {50 to 5000 mbar} | ||
| V………… | 0.14 to 14 MPa { 1.4 to 140 kgf/cm 2 } *1 {20 to 2000 psi} {1.4 to 140 bar} | ||
| Wetted parts
material * 2
|
S #…….. H #…….. M #…….. T #……… A #……..
|
[Body] *2 [Capsule] [Vent plug] SCS14A SUS316L *5 SUS316 *13 SCS14A Hastelloy C-276 *6*12 SUS316 *13 SCS14A Monel *6 SUS316 *13 SCS14A Tantalum *6 SUS316 *13 Hastelloy C-276 equivalent *3 Hastelloy C-276 *6*12 Hastelloy C-276 *12 Hastelloy C-276 equivalent *3 Tantalum *6 Hastelloy C-276 *12 Monel equivalent *4 Monel *6 Monel |
|
pressure sensor
pressure sensor SUS316L A differential diaphragm capsule pressure sensor. The absolute and gauge pressure transmitter model
EJA510A and EJA530A can be used to measure
liquid, gas, or steam pressure. Both output a 4 to 20
mA DC signal corresponding to the measured pressure,
and also feature remote setup and monitoring
through communications with the BRAIN™ terminal
and CENTUM CS™ or μXL™ or HART® 275 host.
STANDARD SPECIFICATIONS
Refer to GS 01C22T02-00E for FOUNDATION Fieldbus
communication type and GS 01C22T03-00E for
PROFIBUS PA communication type marked with “ ”.
PERFORMANCE SPECIFICATIONS
Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil.
Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis,
and repeatability, values are in absolute for
EJA510A)
SUS316L A differential diaphragm capsule pressure sensor
