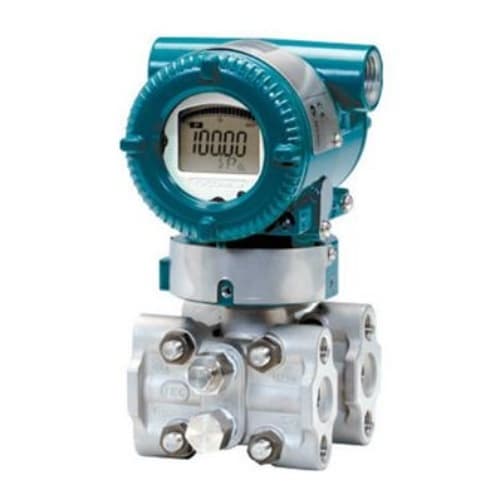

Yokogawa EJX310A Absolute Pressure Transmitter

The high performance absolute transmitter EJX310A features single crystal silicon resonant sensor.

The EJX310A outputs a 4 to 20 mA DC signal corresponding to the measured pressure.

The multi-sensing technology provides the advanced diagnostic function to detect

FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available.

All EJX series models in their standard confi guration

Mounting Position Effects
Tilting up to 90 degree will cause zero shift up to 0.5
kPa (2.0 inH2O), which can be corrected by the zero
adjustment.
Response Time (All capsules) “◊”
90 ms

When amplifier damping set to zero and including
dead time of 45 ms (nominal)
Minimum Pressure at Calibration*
L capsule: 130 Pa abs (1 mmHg abs)
M, A and B capsules: 2.7 kPa abs (20 mmHg abs)
* : If one or two of the calibration points are smaller
than the above value, the above pressure is used
for testing.

In case all of the calibration points are greater
than the limit, only the pressure of upper range
value (URV) is applied for testing.
Specifying option code /S1 with M or A capsule
will lower the limit to 130 Pa abs.
/S1 is recommended for M capsule when
the specified upper range value (URV) is not
exceeding 3.4 kPa abs.
