Yokogawa UT152 Temperature Controller/ Bộ điều khiển nhiệt độ

 Yokogawa UT100 Series

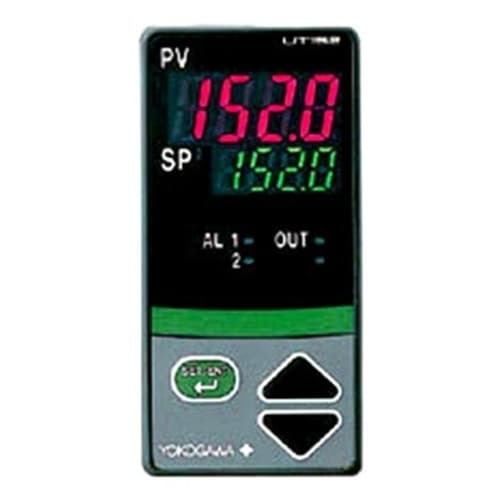

The UT150 Temperature Controller (1/16 DIN size) is a compact, versatile, general-purpose temperature controller. The UT150 has a dynamic auto tune and the “SUPER” overshoot suppress function as standard function. The heating/cooling control, retransmission output, timer function and communication function are available as optional features.



-Small, space-saving 1/16 DIN package, 48 (W) x 48 (H) x 100 (D) (mm)

-Large 4-digit LED display

-IP65 splash-proof and dust-proof designed front panel

-Universal input for Thermocouple, RTD and DC mV/V signals

-Optional heating/cooling control capability

-Optional retransmission output of measured value (PV)

-Optional timer function

-Optional heater burnout alarm and two alarm output relays

-Standard universal power supply (100 V to 240 V AC) and optional 24 V AC/DC power supply

-Optional RS485 communication function, MODBUS, PC-Link & Ladder protocols are supported

-RoHS Compliant



Models and Suffix Codes

Model	Suffix code				Description
UT150 UT152 UT155					Temperature controller
Control output for standard- type (or for heating)		–R –V –A			Relay output (time-proportional PID or on/off control) Voltage pulse output (time-proportional PID) 4 to 20mA output (continuous PID) (Note1)
Control output for cooling			N   R   V   A		No cooling output (standard type) Relay output (time-proportional PID or on/off control) Voltage pulse output (time-proportional PID) 4 to 20mA output (continuous PID)
Option				/AL /HBA     /EX       /RET /RS /V24	Alarm outputs (2 points) (Note2) Heater disconnection alarm (includes optional /AL function) (Note1) (Note2) (Note3) SP1/SP2 switching, starting of timer, and RUN/STOP switching by external contacts (Note4) PV retransmission output in 4 to 20mA (Note3) Communication function (Note4) (Note5) Power Supply 24V DC / 24V AC

Note1: /HBA option cannot be specifed when 4 to 20 mA output (heating-side) is specifed.

Note2: /AL option cannot be specifed when /HBA option is specifed.

/HBA option already includes the /AL option.

Note3: /HBA option and /RET option cannot be specifed at the same time.

Note4: /EX option and /RS option cannot be specifed at the same time.(model UT150 only)

Note5: /EX option includes contact input 1 (for switching between the SP1 and SP2 target setpoints using external contacts) and contact input 2 (for enabling the timer).

Note6: When specifying the /RS option, be sure to order the required number of copies of Communication Functions Instruction Manual separeately. You will not be supplied and instruction manual just because you order for the /RS option.
