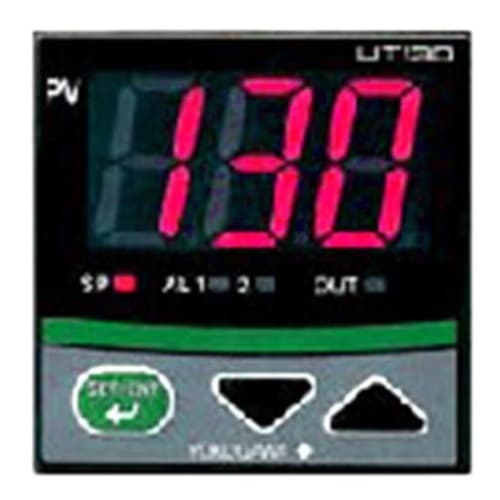

Yokogawa UT130 Temperature Controller/ Bộ điều khiển nhiệt độ



General

The UT130 Temperature Controller (1/16 DIN size) is a compact, economical, easy-to-use temperature controller that comes with an easy-to-see large display. The UT130 has a dynamic auto tune and the “SUPER” overshoot suppress function as standard function. The heating/cooling control and communication function are available as optional features.



-Small, space-saving 1/16 DIN package, 48 (W) x 48 (H) x 100 (D) (mm)

-Large 3-digit LED display Dramatic increase in readability thanks to large LED display with 17.5 mm height digits

-IP65 splash-proof and dust-proof designed front panel

-Universal input for Thermocouple and RTD signals

-Optional heating/cooling control capability

-Optional heater burnout alarm and two alarm output relays

-Standard universal power supply (100 V to 240 V AC) and optional 24 V AC/DC power supply

-Optional RS485 communication function, MODBUS, PC-Link & Ladder protocols are supported

-RoHS Compliant



Models and Suffix Codes

Model	Suffix code				Description
UT130					Temperature controller
Control output for standard type (or for heating)		–R   –V			Relay output (time-proportional PID or on/off control) Voltage pulse output (time-proportional PID)
Control output for cooling			N   R V		No cooling output (standard type) Relay output (time-proportional PID or on/off control) Voltage pulse output (time-proportional PID)
Option				/AL   /HBA     /RS   /V24	Alarm outputs (2 points)  (Note1) Heater disconnection alarm (includes optional /AL function)  (Note1) (Note2) Communication function  (Note2) (Note3) Power Supply 24V DC / 24V AC



Note1: /AL option cannot be specified when /HBA option is specified. /HBA option already includes the /AL option.

Note2: /HBA option cannot be specifed at the same time.

Note3: When specifying the /RS option, be sure to order the required number of copies of Communication Functions Instruction     Manual
