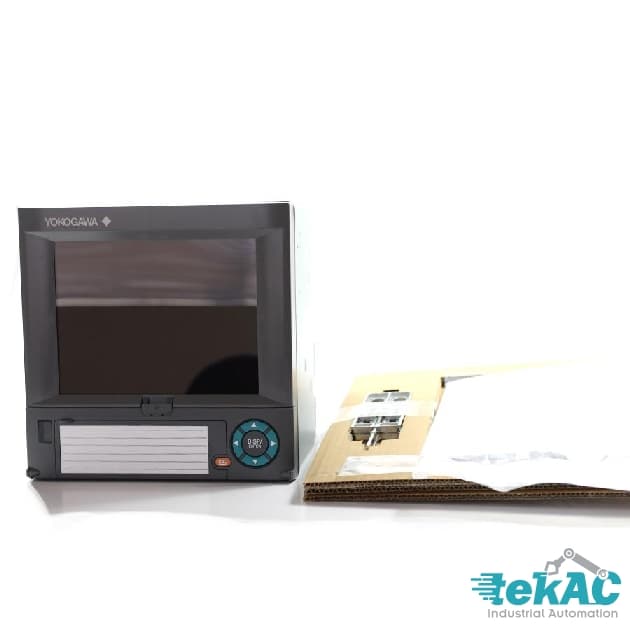

Yokogawa DX2010 Paperless Recorder



Construction

Mounting: Flush panel mounting (on a verticalplane)

Mounting may be inclined downward upto

30 degrees from a horizontal plane.

Allowable panel thickness:

2 to 26 mmMaterial: Case: drawn steel

Bezel: polycarbonateDisplay

filter: polycarbonateCase color

Trend update rate(time/div)

15 s 30 s 1 min 2 min 5 min 10

minSampling period 0.5 s 1 s 2 s 4 s 10 s

20 sSampling time 27.8 h 2 days

4 days 9 days 23 days 46 daysEvent data file (approx.)

Sampling period 25 ms 125 ms 0.5 s

1 s 2 s 5 s 10 sSampling time

2.3 h 11.6 h 46.3 h 3 days

7 days 19 days 38 daysLow voltage

directive:EN61010-1, EN61010-2-030

compliant,Installation category II*1,

pollutiondegree 2*2,

measurement category II*3

Input
type Range Measuring range
DCV
20 mV –20.000 to 20.000 mV
60 mV –60.00 to 60.00 mV
200 mV –200.00 to 200.00 mV
2 V –2.0000 to 2.0000 V
6 V –6.000 to 6.000 V
1-5V –0.800 to 5.200 V
20 V –20.000 to 20.000 V
50 V –50.00 to 50.00 V
TC
R*1 0.0 to 1760.0°C 32 to 3200°F
S*1 0.0 to 1760.0°C 32 to 3200°F
B*1 0.0 to 1820.0°C 32 to 3308°F

DCV
input
(TTL)
OFF : less than 2.4 V
ON : more than 2.4 V
Contact
input Contact ON/OFF

DX2004 4ch, 125ms (Fast sampling mode: 25ms)
DX2008 8ch, 125ms (Fast sampling mode: 25ms)
DX2010 10ch, 1s (Fast sampling mode: 125ms)
DX2020 20ch, 1s (Fast sampling mode: 125ms)
DX2030 30ch, 1s (Fast sampling mode: 125ms)
DX2040 40ch, 1s (Fast sampling mode: 125ms)
DX2048 48ch, 1s (Fast sampling mode: 125ms)
