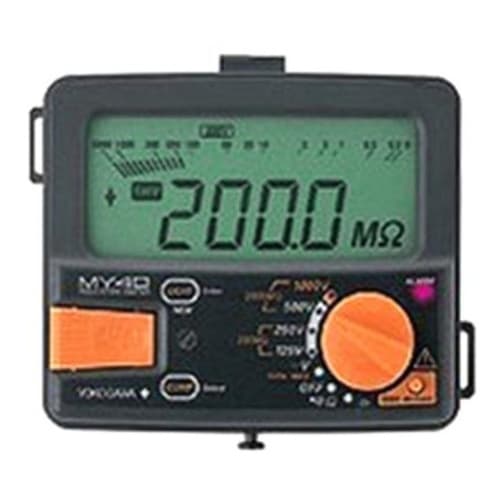

Yokogawa Digital Insulation Tester MY10

Yokogawa Insulation Tester MY10-01

Yokogawa Insulation Tester

Yokogawa Portable and Handheld Instrument



MY10 SERIES OF ANALOG TESTERS

Analog models with single rating

MY10-01:125V/20MΩ

MY10-02:250V/50MΩ

MY10-03:500V/100MΩ

MY10-04:500V/1000MΩ

MY10-05:1000V/2000MΩ

AC voltage measurement

Automatic discharge

A wide choice of accessories-Designed for shared use with the MY40



Specifications – Model MY10-01

Rating	125V/20MΩ
Effective Measuring Range	0.01-20MΩ
Central Scale Value	0.5MΩ
AC Voltage Measurement	0 to 250 V
Lower Limit	0.125MΩ
Rated Current	1-1.2 mA
Approx. Overall Scale Length	107 mm
Battery Life	Approx. 10 hours when continuously operated on manganese – oxide batteries with the pointer pointing to the central scale value.
Batteries	Four AA (R6P) batteries
Approx. Width	125 mm
Approx. Height	103 mm
Approx. Depth	53 mm
Approx. Weight	500 g
Compliance	EN61010-1:1993; EN61010-2-31:1995 (Overvoltage Category III, Pollution Degree 2 installations for indoor use)
Standard Accessories	Batteries (Qty – 4) Earth Probe (98002) (Qty – 1) Line Probe (98001) (Qty – 1) Protection Cover (93013) (Qty – 1) Shoulder Strap (99005) (Qty – 1) User’s Manual (Qty – 1)



Standard Test Conditions – Model MY10-01

Ambient Temperature/Humidity Ranges	23 ±5 /45-75% RH
Position of Use	Horizontal (5° max. of angle of inclination)
Battery Voltage	Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)
Tolerance Mentioned Conditions	Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.
