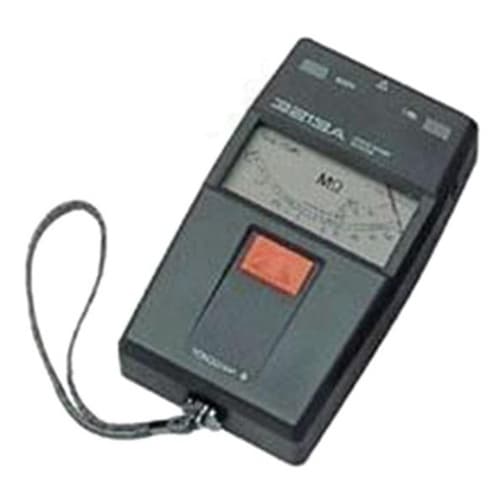

YOKOGAWA ANALOG INSULATION TESTERS 3213A SERIES Model 321343



• Analog models with single rating
• AC voltage measurement and check live lines such as motive power lines
• One-touch operation Press-and-lock switch for continuous measurement
• A wide choice of accessories to meet various testing requirements
• Vibration – and shock-resistant hand-held compact testers
• Approx weight including batteries, or Approx. weigh including hard case, handle, test leads and batteries

Specifications – Model 321343

Rating	500V/100MΩ
Effective Measuring Range	0.1–100MΩ
Central Scale Value	2MΩ
AC Voltage Measurement	0 to 300 V
Lower Limit	0.5MΩ
Rated Current	1 mA
Scale Length	88 mm
Approx. Width	110 mm
Approx. Height	180 mm
Approx. Depth	60 mm
Approx. Weight	700 g 1.2 kg
Batteries	Eight AA (R6P) batteries
Standard Accessories	Batteries Qty – 8 Handle (B9303XE) Qty – 1 Hard case (B9600HA) Qty – 1 (with leads-housing case) Test lead (B9205VA) Qty – 1 (consist of earth/line terminal) User’s manual Qty – 1



Standard Test Conditions – Model 312343

Ambient Temperature/Humidity Ranges	23 ±5 /45-75% RH
Position of Use	Horizontal (5° max. of angle of inclination)
Battery Voltage	Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)
Tolerance Mentioned Conditions	Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.
