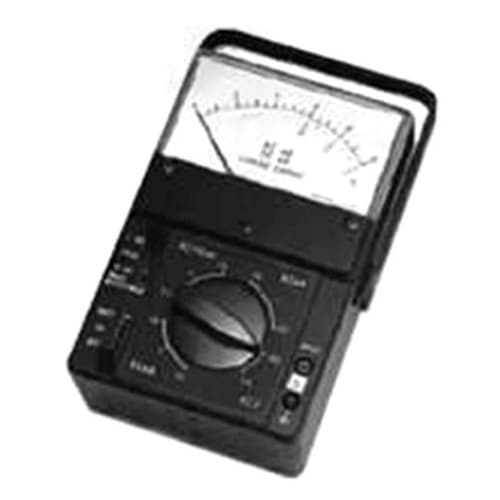

Yokogawa 322610 Leakage current tester

SKU:1344-10080

Place of Origin: Japan
Brand Name: Yokogawa
Model Number: 322610
Product Name: Yokogawa 322610 Leakage current tester
Safety: good
Quality: International Standard for Yokogawa 322610 Leakage current tester
Accuracy: High Accuracy
Model: 322610

Features:

Three input resistance ranges – 1,1.5 and 2 kΩ
Four functions – AC current, DC current. DC + AC current and AC voltage measurements
± 2.5% full scale accuracy
100μA full scale value
Shockproof indicator using taut band movement
Built-in overload protection circuit
Handy and easy to carry
Shielded case, resistant to high-frequency fields

Examples of Application Areas:

Electrothermal appliances
Room heating (electric stove), cooking (toaster), hair-dressing (electric curling iron, hair dryer and curlers).
Motor operated appliances
electric fan, floor polisher, washing machine, electrical pump, refrigerator, electric drill, vending machine, lawn mower and electrical toys.
Light source appliances
Duplicator, projector, photographic enlarger, and electrical disinfector.
Electronic appliances
TV receiver, microwave ranges, and high-frequency welding machine.
Other appliances
Burglar alarm, medical and dental equipment, noise suppressor, and portable generator.

Specifications

Ranges	DC current – 0.1, 1. 10mA, AC current – 0.1, 1, 10mA, (DC + AC) current – 0.1, 1, 10mA, AC Voltage – 150, 300V (50 and 60 Hz)
Accuracy	±2.5% of full scale value on current and voltage range
Input Impedance	Current range: 1kΩ 1.5kΩ , and 2kΩ Voltage range; More than 100kΩ
Frequency Range	20 Hz to 5 kHz
Power Source	Two 9V dry cells (JIS C8501 Type 006P or NEDA 6F22), Continuous Operating Time; Approx. 290 hours
Overload Protection	Up to 30mA AC for one minute will not damage instrument oh current ranges
Temperature Influence	±0.2% of rated value/°C against temperature variation of 20± 10°C
Insulation Resistance	More than 20 MΩ at 500 V DC between terminals and case
Dielectric Strength	1500V AC 50Hz for one minute between electrical circuit and case
Dimensions	Approx. 190 x 124 x 90 mm (7.48 x 4.88 x 3.54″) not including handle
Weight	Approx. 1.0 kg (2.2 lbs)
Accessories1	Carrying Case (322400) 1 pc Carrying Case (B9646BU) 1 pc Instruction Manual 1 copy Test Lead (289803) 1 pc. Test Lead (B9646CM) 1 pc.
Optional Accessories	322710 Text Box
