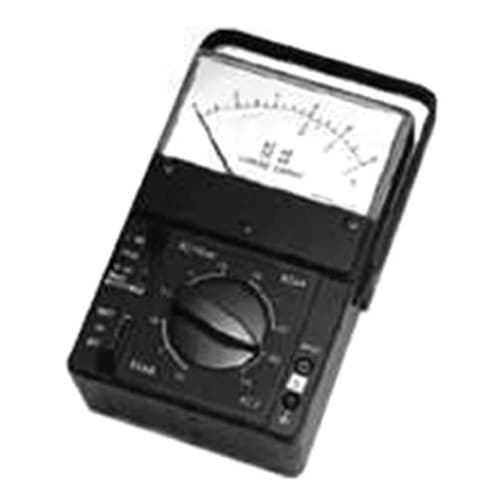

Yokogawa 3201 circuit tester

3201 circuit tester technical parameters:
DC V: 0.3 / 1.2 / 3/12/30/120/300 / 1200V
DC A: 0.012 / 0.12 / 1.2 / 12/120 / 1200mA
ACV: 3/12/30/120/300 / 1200V
Resistance: 2/200 / 20,000 KΩ

• Type 3201 Circuit Tester has measuring function of AC/DC voltage, DC current, DC resistance and decibel. It is suitable for maintenance such as telephones, wireless communication equipment, radios, TV and other general purpose measurements.
• High input resistance and impedance: 100 KΩ/V for DC, 10 KΩ/V for AC
• Rugged construction


  Basic Accuracy & Ranges

  DCV	:	Range,	0.3/1.2/3/12/30/120/300/1200V
  	:	Accuracy,	± 2.0% of full scale (e×cept 1200V range ± 3.0%)
  	:	Remarks,	Input resistance : 100 KΩ/V
  DCA	:	Range,	0.012/0.12/1.2/12/120/1200mA
  	:	Accuracy,	± 3.0% of full scale (e×cept 1200V range ± 4.0%)
  	:	Remarks,	Terminal voltage drop: less than 250 mV
  ACV	:	Range,	3/12/30/120/300/1200V
  	:	Accuracy,	± 3.0%
  	:	Remarks,	Input impedance: 10 KΩ/V
  Resistance	:	Range,	2/200/ 20,000 KΩ
  	:	Accuracy,	± 3.0% of full scale
  	:	Remarks,	enter scale mark: 10 Ω for ma×. Full scale of 2 KΩ (min. Div. 0.2 Ω)
  Decibel	:	Range,	-20 to 11/23/31/43 dB
  	:	Accuracy,	± 3.0% of full scale (dB)
  	:	Remarks,	Input impedance
  St’d accessories	:	1.5V battery: 1, Test leads set: 1, Alligator clip: 1, Portable case:1
