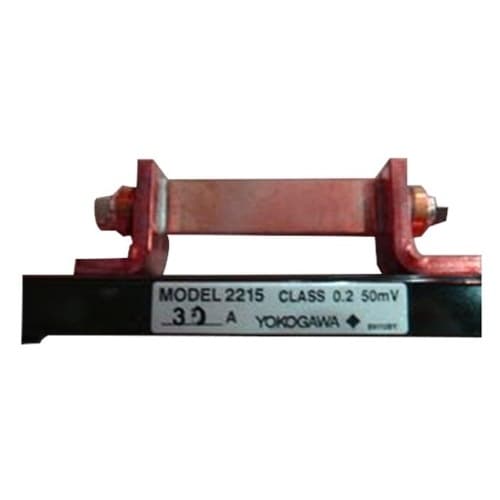

Yokogawa 2215 Series shunts

Shunts role and principles:
DC current measurement shunt is used, produced by the principle of resistance when a voltage across the resistor in accordance with DC current.
Shunt resistance is actually a very small resistance, when a DC current outdated and pressure drop for DC ammeter display; DC ammeter actually voltmeter, full-scale value 75mV; DC ammeter shunt and is supporting the use of;
such as:
100A supporting ammeter shunt resistance 0.00075 Europe;
That European 100A * 0.00075 = 75mV;
50A ammeter supporting shunt resistance 0.0015 Euro; 50A * 0.0015 Euro = 75mV.





Name	Model	input signal	Output signal	Accuracy
Shunts	2215 01	1 A	50 mV	±0.2%
	2215 02	1.5 A
	2215 03	2 A
	2215 04	3 A
	2215 05	5 A
	2215 06	7.5 A
	2215 07	10 A
	2215 08	15 A
	2215 09	20 A
	2215 10	30 A
	2215 11	50 A
	2215 12	75 A
	2215 13	100 A
	2215 14	150 A
	2215 15	200 A
	2215 16	300 A
	2216 01	500 A
	2216 02	750 A
	2216 03	1000 A
	2217 01	1500 A
	2217 02	2000 A
	2217 03	3000 A
	2217 04	5000 A



* Dedicated DC
