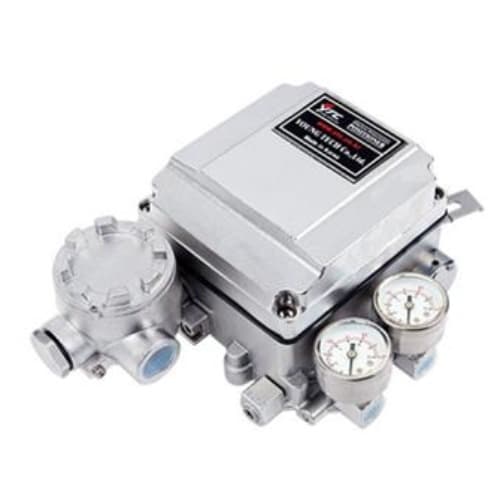

YTC Electro Pneumatic Positioner YT-1050 Series
Electro Pneumatic Positioner YT-1050 series
Electro Pneumatic Positioner YT-1050 series is used for operation of pneumatic valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20mA or split ranges.
Features:
1. The product is made of stainless steel and can be used in corrosive environment or sea environment.
2. Positive and reactive, single and double effects can be easily converted between.
3. The vibration generated by the small actuator can be solved by adding the orifice of the positioner.
4. Air consumption is small, good economy.
5. No need to replace the parts can be achieved within the scope of 1/2 split control.
Description:
YT-3300-LSN ；YT-3350LSN ；YT-3300-LSI ；YT-3350LSI ；YT-3300-LDN ；YT-3350LDN ；YT-3300-LDI ；YT-3350LDI ；YT3300-RSN ；YT-3350RSN ；YT-3300-RSI ；YT-3350RSI；YT-3300-RDN ；YT-3350RDN ；YT-3300-RDI ；YT-3350RDI ；YT-3303LSN ；YT-3303LDN ；YT-3303LSI ；YT-3303LDI ；YT-3303RSN ；YT-3303RSI ；YT-3303RDN ；YT-3303RDI ；YT-3301LSN；YT-3301LSI ；YT-3301LDN ；YT-3301LDI ；YT-3301RSN ；YT-3301RSI ；YT-3301RDN ；YT-3301RDI ；YT-3400LSC；YT-3400LDC ；YT-3400RSC ；YT-3400RDC ；YT-3450LSC ；YT-3450LDC；YT-3450RSC ；YT-3450RDC ；YT-2500LSN ；YT-2500LDN ；YT-2500LSI ；YT-2500LDI ； YT-2500RSN ；YT-2500RDN ；YT-2500RSI ；YT-2500RDI ；YT-2550LSN ；YT-2550LDN ；YT-2550LSI；YT-2550LDI ； YT-2550RSN ；YT-2550RDN ；YT-2550RSI ；YT-2550RDI ；YT-2501LSN ；YT-2501LDN ；YT-2501LSI ；YT-2501LDI ；YT-2501RSN ；YT-2501RDN ；YT-2501RSI ；YT-2501RDI；YT-2600LSC ；YT-2600LDC ；YT-2600RSC ；YT-2600RDC ；YT-2700LSN ；YT-2700LSI ；YT-2700RSN ；YT-2700RSI ；YT-1000LSn ；YT-1000LDn ；YT-1000LSm ；YT-1000LDm ；YT-1000LSc ；YT-1000LDc ；YT-1000LSi ；YT-1000LDi ；YT-1000LSp ；YT-1000LDp ；YT-1000LSH ；YT-1000LDH ；YT-1000RSn ；YT-1000RDn ；YT-1000RSm ；YT-1000RDm ；YT-1000RSc ；YT-1000RDc ；YT-1000RSi；YT-1000RDi ；YT-1000RSp ；YT-1000RDp ；YT-1000RSH ；YT-1000RDH ；YT-1050LSn ；YT-1050LSm ；YT-1050RSn ；YT-1050RSm ；
parameter:
Item: YT-1050 double acting, single acting
Input signal: 4 ~ 20mA DC
Impedance: 250 ± 15 Ohm
Input pressure: 0.14 ~ 0.7MPa (1.4-7bar)
Travel range: YT-1050L: 10 ~ 150mm; YT-1050R: 0 ~ 90 °
Air connection: NPT 1/4
Pressure gauge interface: NPT 1/8
Power interface: PF1 / 2 (G1 / 2)
Explosion protection rating: Exdmb IIB T5
Protection class: IP66
Linearity: Single acting: ± 1% F.S .; Double acting: ± 2% F.S.
Sensitivity: Single acting: ± 0.2% F.S .; Double acting: ± 0.5% F.S.
Repeatability: ± 0.5% F.S
Air consumption: 2.5LPM (sup = 0.14MPa)
Flow: 80 LPM (sup = 0.14MPa)
Material: Stainless steel
Weight: 5.71kg
