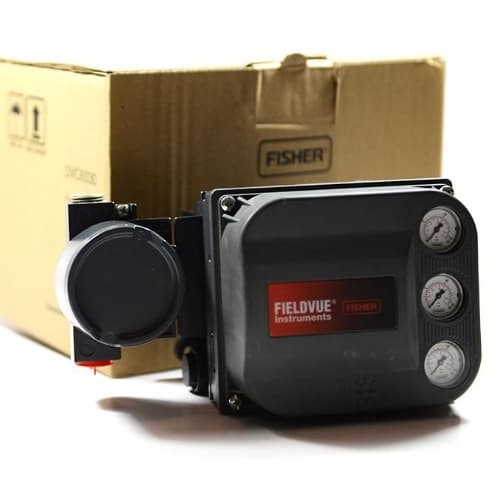

Fisher Valve Positioner/ Van điều khiển tuyến tính DVC6000 Series DVC6010 Valve Controllers
Fisher Valve positioner
Fisher Valve positioner DVC6000 Series DVC6010 Valve Controllers
The DVC6000 series digital valve controller is a microprocessor based electro pneumatic converter. In addition to the standard function of converting current signals to pneumatic output pressure, the DVC6000 series digital valve controllers use HART communication protocols to easily access information vital to process operations.
DVC6000 series digital valve controller is designed to replace the standard pneumatic and electro pneumatic valve positioner mounted directly on the valve.
fisher DVC6200 positioner can be used to replace the old models fisherDVC6200 DVC6010,6020,6030 locator
- HART communication protocol
- Loop power supply of 2 wire system 4-20mA
- Overload current protection
- Reverse polarity protection
- Output signal range: 0.4bar (6 psi) ~9.5bar (140 psi)
- Independent linearity: + 0.5% of the output range
Fisher DVC6000 Series Digital Valve Controllers DVC6010 positioner
Classification and application:
Products directly mounted on the valve:
- DVC6010: used in straight stroke control valves
- DVC6020: for rotary and long stroke straight stroke control valves
- DVC6030: for 90 degree rotary control valve
Remote installation of products:
- DVC6005: Basic unit for 2-inch tubing or wall panel mounting
- DVC6015: The feedback unit is used for straight stroke valves
- DVC6025: The feedback unit is used for rotary and long stroke straight stroke valves
- DVC6035: The feedback unit is used for 90 degree rotary valves
Specific models are as follows:
- DVC6010-AC single acting, DVC6010-AC double acting,
- DVC6010-HC single acting, DVC6010-HC double acting
- DVC6020-AC single acting, DVC6020-AC double acting,
- DVC6020-HC single acting, DVC6020-HC double acting
- DVC6030-AC single acting, DVC6030-AC double acting,
- DVC6030-HC single acting, DVC6030-HC double acting
ABB positioner model is as follows:
- V18345-1010521001
- V18345-1010121001
- V18345-1020121001
- V18345-1010120001
- V18345-1004210001
- V18345-1021120001
- V18345-1020520001
- V18345-1010221001
Siemens (SIEMENS) positioner models are as follows:
- 6DR5220-0EN00-0AA0
- 6DR5010-0NG00-0AA0
- 6DR5215-0EN00-0AA0
- 6DR5020-0NG00-0AA0
- 6DR5010-0NG01-0AA0
- 6DR5110-0EG00-0AA0
- 6RD5210-0NN00-0AA0
- 6DR5010-0NN01-0AA0
