Pressure sensor

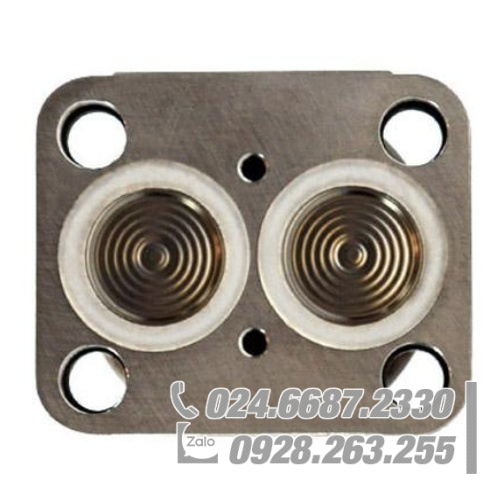

America Original Alloy C-276 diaphragm capsule pressure transmitter sensor for Rosemount 3051CD1A23A1AHR5B4
Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,
Gage, and Absolute pressure measurement. The Coplanar Platform enables seamless
integration with manifolds, flow and level solutions.
| Model | Transmitter type |
| 3051C(1) | Coplanar Pressure Transmitter |
| Measurement type | |
| D | Differential |
| G | Gage |
| A2 | Absolute |
| Differential (3051CD) | Gage (3051CG) | Absolute (3051CA) | |
| 1 | –25 to 25 inH2O (-62,16 to 62,16 mbar) |
–25 to 25 inH2O (-62,16 to 62,16 mbar) |
0 to 30 psia (0 to 2,06 bar) |
| 2 | –250 to 250 inH2O (-621,60 to 621,60 mbar) |
–250 to 250 inH2O (-621,60 to 621,60 mbar) |
0 to 150 psia (0 to 10,34 bar) |
| 3 | –1000 to 1000 inH2O (-2,48 to 2,48 bar) |
–393 to 1000 inH2O (-0,97 to 2,48 bar) |
0 to 800 psia (0 to 55,15 bar) |
| 4 | –300 to 300 psi (-20,68 to 20,68 bar) |
–14.2 to 300 psi (-0,97 to 20,68 bar) |
0 to 4000 psia (0 to 275,79 bar) |
| 5 | –2000 to 2000 psi (-137,89 to 137,89 bar) |
–14.2 to 2000 psi (-0,97 to 137,89 bar) |
N/A |
| 0(3) | –3 to 3 inH2O (-7,46 to 7,46 mbar) |
N/A | N/A |
