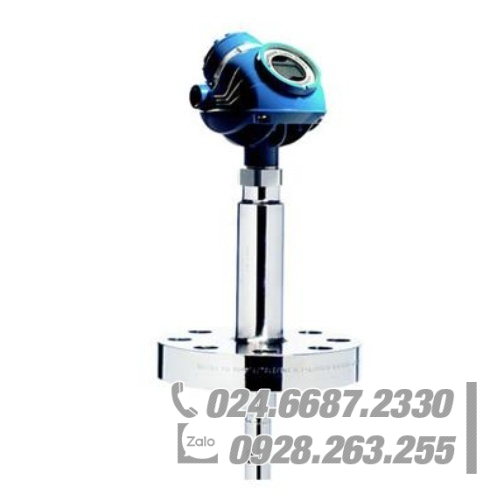

Rosemount 5300 Series Level Transmitter

Rosemount 5300 series radar transmitter

Product

Model 5301 for level of liquids or submerged interfaces.

Measurement Principle

Time Domain Reflectometry (TDR)

Measuring Range

Up to 164 ft. (50 m)

Dielectric Constant

Minimum 1.2 for coaxial probe or single probe installed in

bypass, other probes from 1.4. SeeProduct

Data Sheet for complete data.

Probe Materials

SST, Alloy 400, Alloy C276 (UNS N10276), or PTFE-covered SST

Reference Accuracy

± 0.1 in. (± 3 mm) or ± 0.03% of measured distance,

whichever is greatest

Repeatability

±0.04 in. (±1 mm)
Output

4-20mA with superimposed digital HART® communication

FOUNDATION® Fieldbus Modbus

Process Temperature

Up to 752 ºF (400 ºC). See Product Data Sheetfor complete data

Lowest Temperature

From -320 ºF (-196 ºC)

Process Pressure

4-20mA with superimposed digital HART® communication, and

FOUNDATION® Fieldbus

Ex-Approvals

Intrinsic Safety (IS) or Explosion-proof/Flameproof (ATEX, CSA, IECEx, FM, …)

Display

5-digit integral display (Optional)

Output Variables

Level, Interface Level, Distance, Interface Distance, Upper

Product Thickness, Volume, Level Rate,

Signal Strength, Housing Internal Temperature, Aout current

and % of Range

Enclosure

Polyurethane-covered die-cast Aluminum or stainless steel

housing with dual compartments.

Ingress Protection

Type 4X, IP66, IP67

Fieldbus Functionality

Link-master device (backup LAS), PlantWeb Alerts, Methods

Fieldbus Blocks

Resource, 3xTransducer, 6xAnalog Input (30 ms), PID (40 ms),

Arithmetic, Input Selector, Output

selector (65 ms) ,Signal Characterizer (75 ms)

Configuration Tools

Rosemount Radar Master, 375 Field Communicator, AMS Suite:

Intelligent Device Manager, DeltaV or

any other DD- or EDDL-compatible host-system.
