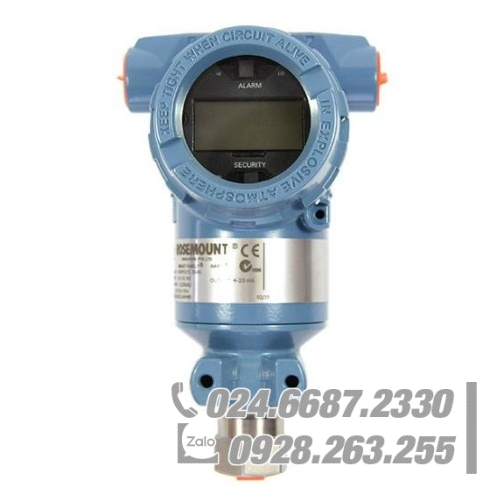

Rosemount 3051TA Absolute Pressure Transmitter

Output

  • 4-20 mA with digital signal based on HART Protocol
  • Low Power, 1-5 V dc with digital signal based on HART Protocol
  • Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

Range

  • 0-0.3 to 0-10,000 psig

Accuracy

  • 1-5: +/-0.075% of span

Power

  • 4-20 mA: 10.5-55 V dc with no load
  • Low Power: 6-12 V dc with no load

Materials

  • Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel

Fluid

  • Sensor fill fluid: Silicone, Inert (Halocarbon)

Mounting

  • Coplanar and Traditional flanges
  • Adapters: Cadmium and Nickel-plated CS, 316 SST
Mã: 1355-10240 Danh mục:

Rosemount pressure transmitter

Rosemount 3051TA Absolute Pressure Transmitter



Gage (3051TG)(3) Absolute (3051TA)
1 -14.7 to 30 psi (-1,01 to 2,06 bar) 0 to 30 psia (0 to 2,06 bar)
2 -14.7 to 150 psi (-1,01 to 10,34 bar) 0 to 150 psia (0 to 10,34 bar)
3 -14.7 to 800 psi (-1,01 to 55,15 bar) 0 to 800 psia (0 to 55,15 bar)
4 -14.7 to 4000 psi (-1,01 to 275,79 bar) 0 to 4000 psia (0 to 275,79 bar)
5 -14.7 to 10000 psi (-1,01 to 689,47 bar) 0 to 10000 psia (0 to 689,47 bar)





Transmitter output
A(4) 4–20 mA with Digital Signal Based on HART Protocol
F FOUNDATION fieldbus Protocol
