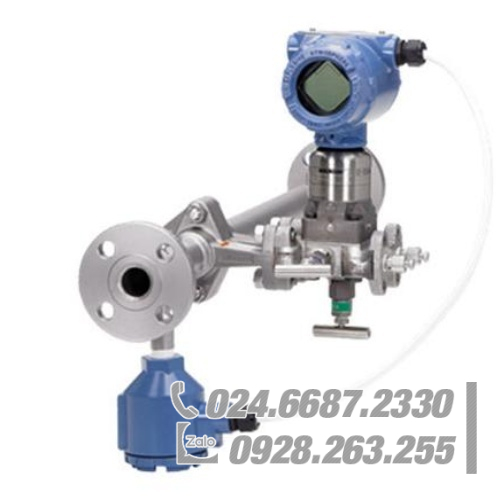

Rosemount Flowmeter 3051SFP ProPlate Flow Meter
It is a no-equal multivariable device customized with an integral orifice primary element. And this meter run assembly provides easy installation and is engineered to facilitate highly accurate flow measurement in small line sizes (0.5 – 1.5 in. or 15 – 40 mm). What’s more, this device is also engineered with built-in flow calculations for fully compensated mass flow measurements.
CHAT NOW
CONTACT US
LEARN ABOUT
REQUEST QUOTE
Specifications
DOWNLOAD FULL SPECS
Measurement Type: Differential Pressure, Static Pressure, Process Temperature, differential Pressure and Static Pressure, and differential Pressure and Process Temperature
Differential Pressure
Accuracy: Up to ±1.05% of flow rate
Stability: Up to ±0.15% of Upper Range Limit (URL) for 15 years
Warranty: Up to 15-year limited warranty
Rangedown: Up to 200:1 (14:1 flow turndown)
Measurement Range: Up to 2000 psi (137,89 bar) differential, Up to 3626 psi (250,00 bar) static
Line Size: 0.5 to 1.5 in. (15 to 40 mm)
Output: Differential pressure, static pressure, process temperature, scaled variable, mass flow, volumetric flow, energy flow
Communication Protocol: 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus
Process Wetted Material: 316 SST
Diagnostics: Basic Diagnostics, Power Advisory Diagnostics, Advanced Diagnostics
Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications
Features
Designed with built-in flow calculations for direct reporting of fully-compensated mass flow
Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues
Primary element integrated in a meter run for ease of installation
Suitable for small line sizes 0.5- 1.5 in. (15 – 40 mm) for optimal flow measurement accuracy and repeatability
