Rosemount Flowmeter

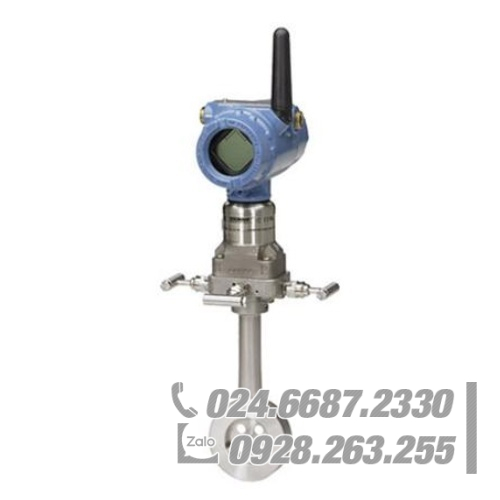

Rosemount Flowmeter 3051SFC Compact Orifice Flow Meter
The Rosemount Compact Orifice Flowmeters
3051SFC, 3095MFC, 3051CFC, 2051CFC, 405P
It’s no coincidence that orifice plates are still the most popular flow technology. They provide reliable and accurate flow measurement for gas, liquid and steam applications. Compact Orifice flowmeter installations are straightforward and affordable.
The Rosemount 405P Compact Orifice Flowmeter is designed for closed loop control and general purpose monitoring applications. This design lowers the total installed cost of DP Flow measurement points eliminating the need for fittings, impulse tubing, valves, adapters and manifolds by providing a single device packaged together for simplified installation.
By integrating Rosemount pressure transmitters with the 405 Compact Orifice primary element, we deliver the highest performing Flowmeters which arrive assembled, calibrated, pressure tested, and ready to install.
Features of the Rosemount Compact Orifice Flowmeter include:
Available up to ANSI 600# pressure rating
Follows industry standard utilizing ASME and ISO corner tap design
Installation between existing raised-faced flanges
Self centering ring ensure optimal accuracy while improving installatio
Features
- Ideal for liquids, suitable for gas & steam
- 1/2 to 12″ pipe size
- Accuracy: +/- 0.8 % of rate for liquids
- 8:1 flow turndown
- 4-20mA signal based on Hart Communication or FOUNDATION fieldbus
- Simple installation
- Reduced straight pipe run
- Direct mounting capable
- Centering mechanism
It’s no coincidence that orifice plates are still the most popular flow technology. They provide reliable and accurate flow measurement for gas, liquid and steam applications. Compact Orifice flowmeter installations are straightforward and affordable.
The Rosemount 405P Compact Orifice Flowmeter is designed for closed loop control and general purpose monitoring applications. This design lowers the total installed cost of DP Flow measurement points eliminating the need for fittings, impulse tubing, valves, adapters and manifolds by providing a single device packaged together for simplified installation. By integrating Rosemount pressure transmitters with the 405 Compact Orifice primary element, we deliver the highest performing Flowmeters which arrive assembled, calibrated, pressure tested, and ready to install.
