Rosemount 3051CG Coplanar Gage Pressure Transmitter / đo áp suất

Rosemount 3051CD Coplanar Differential Pressure Transmitter / đo áp suất

Rosemount Pressure Transmitter

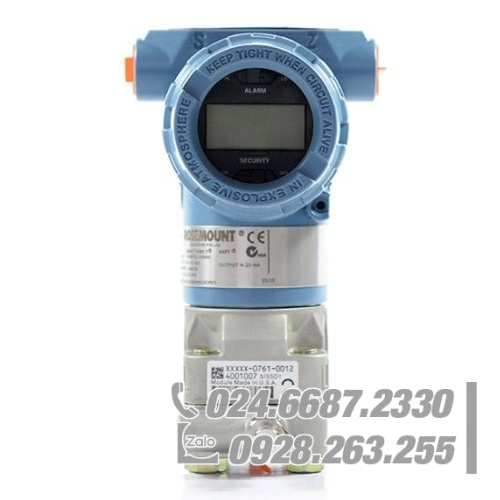

Rosemount 3051CD Coplanar Differential Pressure Transmitter

Output

  • 4-20 mA with digital signal based on HART Protocol
  • Low Power, 1-5 V dc with digital signal based on HART Protocol
  • Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

Range

  • 0-0.01 in H2O to 0-2000 psid

Accuracy

  • 0-1: +/-0.1% of span

Power

  • 4-20 mA: 10.5-55 V dc with no load
  • Low Power: 6-12 V dc with no load

Materials

  • Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum

Fluid

  • Sensor fill fluid: Silicone, Inert (Halocarbon)

Mounting

  • Coplanar and Traditional flanges
  • Adapters: Cadmium and Nickel-plated CS, 316 SST
Mã: 1355-10160 Danh mục:

Rosemount  Pressure Transmitter

Rosemount 3051CD Coplanar Differential Pressure Transmitter



Model Transmitter type
3051C(1) Coplanar Pressure Transmitter
Measurement type
D Differential
G Gage
A2 Absolute



Differential (3051CD) Gage (3051CG) Absolute (3051CA)
1 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 0 to 30 psia
(0 to 2,06 bar)
2 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 0 to 150 psia
(0 to 10,34 bar)
3 –1000 to 1000 inH2O
(-2,48 to 2,48 bar)		 –393 to 1000 inH2O
(-0,97 to 2,48 bar)		 0 to 800 psia
(0 to 55,15 bar)
4 –300 to 300 psi
(-20,68 to 20,68 bar)		 –14.2 to 300 psi
(-0,97 to 20,68 bar)		 0 to 4000 psia
(0 to 275,79 bar)
5 –2000 to 2000 psi
(-137,89 to 137,89 bar)		 –14.2 to 2000 psi
(-0,97 to 137,89 bar)		 N/A
0(3) –3 to 3 inH2O
(-7,46 to 7,46 mbar)		 N/A N/A

Transmitter output：  4–20 mA with Digital Signal Based on HART Protocol
