Rosemount Pressure Transmitter

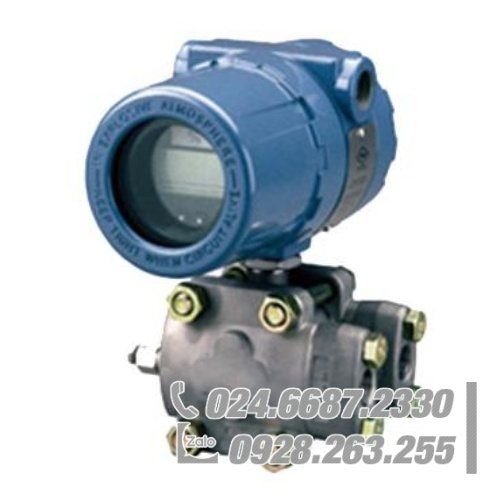

Rosemount 1151 Pressure Transmitter

The Rosemount 1151 pressure transmitter combines modular

construction, interchangeable parts, dual compartment

housings, advanced electronics and sensors with proven field

performance, reliability and longevity in even the harshest

of environments. This combination of factors has made the

Rosemount 1151 pressure transmitter one of the most popular

pressure transmitters with millions installed worldwide.

The Rosemount 1151 pressure transmitter incorporates a

number of manufacturing and technological enhancements to

produce ±0.075% reference accuracy and rangeability to

50:1. An extended two-year stability of 0.10% provides

confidence in your pressure measurements.

The modular design of the Rosemount 1151 pressure

transmitter allows interchangeable mechanical and electrical

components, providing backward and forward compatibility.

The Rosemount 1151 pressure transmitter offers a variety of

configurations for differential, gauge, absolute, and

liquid-level measurements including integrated solutions for

pressure, level, and flow.

High pressure models allow static line pressures up to 6000 psi.

Multiple wetted materials, as well as alternative fill

fluids ensure process compatibility.

Smart, analog, and low-power electronics are available to

meet specific application requirements.

Specification

Pressure types:Gauge pressure,absolute pressure,differential pressure

Measuring rangeGauge: 200Pa-40MPa

Absolute: 2kPa – 10MPa

Differential: 200Pa-10Mpa

Output signal:4-20mA,4~20mA/HART , customer

Reference accuracy:0.075% ,0.05%,

Working temperature:-40-85℃, LCD display unit:-20-70℃

measuring medium:Liquid, gas, or steam level, density and pressure

Media temperature:with silicone oil -40-120℃,

with fluorocarbon oil -10-80℃

Proction class:IP67

OUTPUT SIGNAL:4~20mA two wire,power supply: 10.5-
55vdc

4~20mA+HART two wire,power supply: 16.5-55vdc

Diaphragm material:SS316L,Hastelloy C

Stability: ±0.2% URL/5years

Approvals: Flame proof certificate, ExdIICT6,

NEPSI,Intrinsic safety certificate, ExiaIICT4, NEPSI,CE certificate

Dimension
