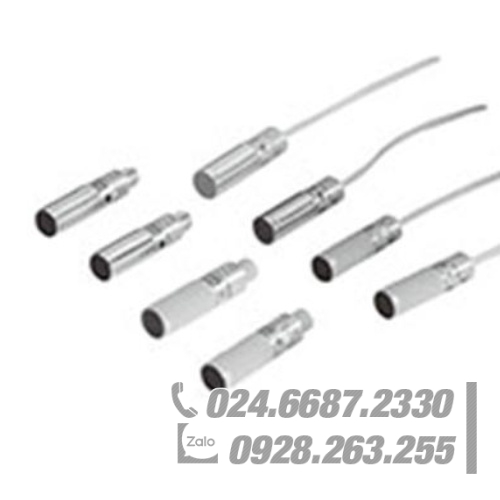

Omron Proximity Sensor E2K-X Series





Equipped with M12, M18, M30 type

Detection of fixed distance without adjustment

species:
Ontology

Shape Detection Distance Output Type Model

Action mode

NO NC

Unshielded

471-lu-1-1

M12 4mm DC 3-wire NPN E2K-X4ME1 2M E2K-X4ME2 2M

DC 3-wire PNP E2K-X4MF1 2M E2K-X4MF2 2M

AC 2-wire E2K-X4MY1 2M E2K-X4MY2 2M

M18 8mm DC 3-wire NPN E2K-X8ME1 2M E2K-X8ME2 2M

DC 3-wire PNP E2K-X8MF1 2M E2K-X8MF2 2M

AC 2-wire E2K-X8MY1 2M E2K-X8MY2 2M

M30 15mm DC 3-wire NPN E2K-X15ME1 2M E2K-X15ME2 2M

DC 3-wire PNP E2K-X15MF1 2M E2K-X15MF2 2M

AC 2-wire E2K-X15MY1 2M E2K-X15MY2 2M

Rating:
Item Model E2K-X4ME □,

E2K-X4MF □,

E2K-X4MY □ E2K-X8ME □,

E2K-X8MF □,

E2K-X8MY □ E2K-X15ME □,

E2K-X15MF □,

E2K-X15MY □

Detection distance 4mm ± 10% 8mm ± 10% 15mm ± 10%

Set distance * 1 0 ~ 2.8mm 0 ~ 5.6mm 0 ~ 10mm

Should be detected by the distance of 4 to 20%

Can detect object conductor and dielectric body

Standard detection of objects to ground metal plate 50 × 50 × 1mm

Response frequency E type, F type: 100Hz,

Y type: 10Hz

Power supply voltage * 2

(Use voltage range) E type, F type: DC12 ~ 24V (DC10 ~ 30V)

Y type: AC100 ~ 220V (AC90 ~ 250V)

Current consumption E type, F type: 15mA or less

Leakage current Y type: 2.2mA below See sample

Control output switch capacity E type, F type: 200mA or less * 2 Y type: 10 ~ 200mA

Residual voltage E type, F type: 2V or less (load current

200mA, wire length 2m) Y type: Please refer to the sample

“characteristic data”

Indicator E type, F type: detection indicator (red) Y type: action indicator (red)

Action mode

(When the detection object is close) E1, F1, Y1 type: NO

E2, F2, Y2: NC

For details, refer to the timing diagram of the “Input

Output Section Circuit Diagram” on the sample

Protection circuit E type, F type: reverse connection

protection, surge absorption, load short circuit protection,

output reverse protection, Y type: surge absorption

Ambient temperature range of work, when stored: -25 ~ +70 °

C (no freezing, no condensation) work, save: the -10 ~ +

(No freezing, no condensation)

Ambient humidity range when operating, save: 35 ~ 95% RH (no condensation)

Temperature effects within the temperature range, + 23 ° C,

the detection distance of ± 20% or less

Voltage effect E type, F type: within ± 20% of the rated

power supply voltage, the rated power supply voltage, the

detection distance of ± 2%

Y type: within ± 10% of the rated power supply voltage, the

rated power supply voltage, the detection distance of ± 2%

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage E type, F type: AC1,000V 50 / 60Hz 1min

charging part of the whole and the shell between

Y type: AC2,000V 50 / 60Hz 1min charging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz double amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 3 times

Protection structure IEC standard IP66, the company internal standard oil

Connection type Wire lead type (standard wire length 2m)

The quality (after packaging) is about 65g about 145g about 205g

Material shell heat ABS

Detection surface

Tighten nuts with polyacetal

Accessories manual

* 1. The numbers in the table are the detection distance of

the standard detection object. For other materials, see

“Characteristic data” on the sample.

* 2. Type E, type F (DC switch type) can use DC24V ± 20%

(average) full-wave rectifier power supply.
