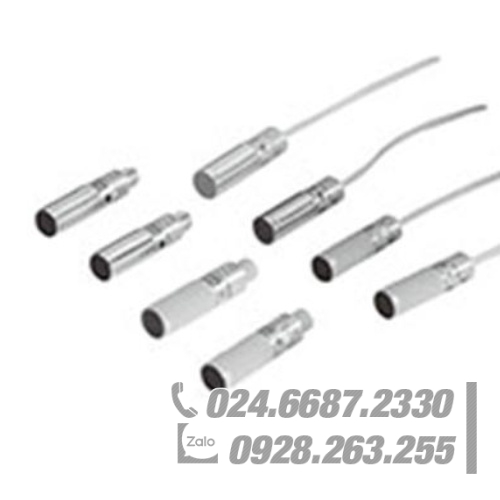

Omron Proximity Sensor E2C-EDA Series
Features:
To achieve the miniaturization of the sensor. Compact
Available in a temperature range of -10 to + 200 ° C.
species:
Ontology
Standard type
The sensor section is part of the amplifier unit
Shape stability detection distance * 1 Model Model Power /
Output form timer
Function self-test
Output
shield
464_lu_1_1
Φ 3.5 0.8 (1.8)
Mm E2C-CR8A 3M E2C-GE4A DC / (NPN) – –
E2C-GF4A DC / (PNP) – –
E2C-JC4AP 2M
* 2 DC / (NPN) ○ ○
E2C-JC4A 2M DC / (NPN) ○ –
E2C-AM4A DC / (NPN PNP) – –
E2C-AK4A AC –
Φ3.8 0.8 (1.8)
Mm E2C-CR8B 3M E2C-GE4A DC / (NPN) – –
E2C-GF4A DC / (PNP) – –
E2C-JC4AP 2M
* 2 DC / (NPN) ○ ○
E2C-JC4A 2M DC / (NPN) ○ –
E2C-AM4A DC / (NPN PNP) – –
E2C-AK4A AC –
M5 1 (2)
Mm E2C-X1A 3M E2C-GE4A DC / (NPN) – –
E2C-GF4A DC / (PNP) – –
E2C-JC4AP 2M
* 2 DC / (NPN) ○ ○
E2C-JC4A 2M DC / (NPN) ○ –
E2C-AM4A DC / (NPN PNP) – –
E2C-AK4A AC –
Φ5.4 1 (2)
Mm E2C-C1A 3M E2C-GE4A DC / (NPN) – –
E2C-GF4A DC / (PNP) – –
E2C-JC4AP 2M
* 2 DC / (NPN) ○ ○
E2C-JC4A 2M DC / (NPN) ○ –
E2C-AM4A DC / (NPN PNP) – –
E2C-AK4A AC –
M8 1.5 (3)
Mm E2C-X1R5A 3M E2C-GE4A DC / (NPN) – –
E2C-GF4A DC / (PNP) – –
E2C-JC4AP 2M
* 2 DC / (NPN) ○ ○
E2C-JC4A 2M DC / (NPN) ○ –
E2C-AM4A DC / (NPN PNP) – –
E2C-AK4A AC –
The sensor section is part of the amplifier unit
Shape stability detection distance
* 1 Model Model Power /
Output form timer
Function self-test
Output
shield
464_lu_1_1
M12 2 (5) mm E2C-X2A 3M E2C-JC4AP 2M * 2 DC / (NPN) ○ ○
E2C-JC4A 2M DC / (NPN) ○
E2C-AM4A DC / (NPN
PNP) – –
E2C-AK4A AC –
The sensor section is part of the amplifier unit
Shape stability detection distance
* 1 Model Model Power /
Output form timer
Function self-test
Output
shield
464_lu_1_1
M18 5 (10)
Mm E2C-X5A 3M E2C-AM4A DC /
(NPN PNP) – –
E2C-AK4A AC –
M30 10 (18)
Mm E2C-X10A 3M E2C-AM4A DC /
(NPN PNP) – –
E2C-AK4A AC –
Unshielded
464_lu_1_2
Φ40 20 (50)
Mm E2C-C20MA 3M E2C-AM4A DC /
(NPN PNP) – –
E2C-AK4A AC –
Note 1. () is the maximum detection distance (+ 23 ° C constant)
2. Self-test output function, with timer function, and DIN rail installation can be.
Heat resistant type
The sensor section is part of the amplifier unit
Shape stability detection range Model number
shield
464_lu_4_1
M8 1.5mm E2C-X1R5AH 3M E2C-JC4CH 2M
M12 2mm E2C-X2AH 3M E2C-JC4DH 2M
M18 5mm E2C-X5AH 3M E2C-JC4EH 2M
Note: Changes in the length of the sensor lead to changes in
characteristics, so please do not cut / extend.
Accessories (sold separately)
The mounting brackets are not included in the sensor
accessories, please order as needed.
Name Model Applicable sensor Remarks
Installation bracket Y92E-F3R5 E2C-CR8A φ3.5 with ─ ─ ─
Y92E-F5R4 E2C-C1A φ5.4 with
The connection socket is not included in the amplifier
accessories, please order as needed.
Name Model Applicable Amplifier Unit Remark
Surface connection socket PYF08A E2C-GE4A
E2C-GF4A fixed bracket (sold separately)
PYC-A1
P2CF-08 E2C-AM4A ─ ─
P2CF-11 E2C-AK4A
Back connection socket P3G-08 E2C-AM4A
P3GA-11 E2C-AK4A
PY08 E2C-GE4A
E2C-GF4A
The adapter is not included in the amplifier accessories, so please order as needed.
Name Model Applicable Amplifier Unit Remark
Embedded mounting adapter Y92F-30 E2C-AM4A / -AK4A ─
Y92F-70
Y92F-71
