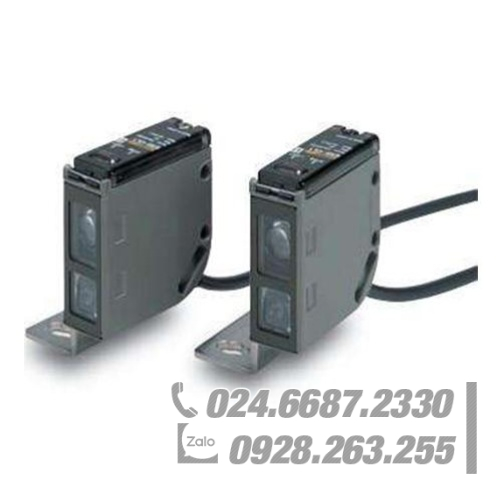

E3S-CL series
Detection method Distance setting type
Model E3S-CL1 E3S-CL2
Detection range of 5 ~ 200mm (white paper 200 × 200mm)
Set the range of 40 ~ 200mm (white paper 200 × 200mm) 50 ~ 500mm (white paper 200 × 200mm)
Should be less than 2% of the rated distance of less than 10% of the rated distance
Reflectivity characteristics (black and white error) * 1 Rated distance of less than 2% of the rated distance of less than 10%
Light source (light-emitting wavelength) Red light-emitting diode (700nm) Red light-emitting diode (700nm)
Power supply voltage DC 10 ~ 30V (including fluctuation (p-p) 10%]
Current consumption below 35mA below 50mA
Control output load supply voltage below DC30V, load current below 100mA (residual voltage NPN output: 1.2V or less, PNP output: 2.0V or less)
Open collector output type (NPN / PNP output switch switching type)
ON / ON when light is ON ON switch
Protection circuit power reverse connection protection, output short circuit protection, to prevent interference
Response time action, reset: the following 1ms action, reset: the following 2ms
Distance setting 6 Turn the full rotary knob (with indicator)
Impact (durable) 500m / s2X, Y, Z direction 3 times
Protection structure IEC standard IP67, NEMA 6P
(For indoor use only) * 2 IEC standard IP67 (internal standard oil), NEMA 6P
(For indoor use only) * 2
Connection type wire lead type (standard wire length 2m)
After the quality (after packaging) about 170g
Material shell zinc die casting
The operating part covers the polyether sulfone
Lens part isobutylene resin
Mounting bracket Stainless steel (SUS304)
