proximity sensor

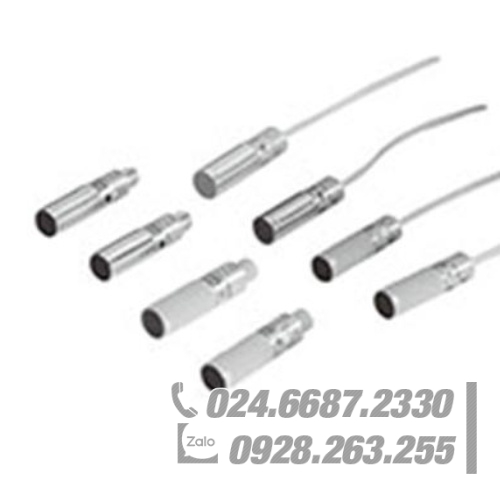

new and original omron E2G cylindrical Series
Cost-effective standard
· Standard cable protection
· Added DC 2-wire model
· Non-polar 2-wire
High quality for extra long life in daily use
•continuously high quality level through specialized
manufacturing process
•DC 3-wire and DC 2-wire models
•up to 30mm sensing distance
•Stainless steel and brass housings
•Pre-wired versions with different cable materials and diameters,
M8 and M12 connector types, pre-wired types with cable end connectors
The metal heads of the achieve the same distances for
This allows you to use them that withstand
friction with the workpiece without major changes to mounting brakets.
The 0.4-mm metal head exhibits almost no wear due to
friction with the workpiece or cleaning with metal brushes.
This helps prevent equipment down time due to sensor failure
and reduces the frequency of replacement.
Spatter-resistant models with fluororesin-coated head are also available.
Reduces adhesion of spatter to achieve stable detection.
The tough all-stainless steel housing with a flame-retardant
cable enables reliable application where spatter is present
near welding machines.
Main information
Sensing object
Ambient temperature range
Dielectric strength
Degree of protection
Ferrous metal (The sensing distance decreases with non-
ferrous metal.
Refer to Engineering Data on Data Sheet.)
Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no
icing or condensation)
1,000 VAC, 50/60 Hz for 1 minute between current-carrying
parts and case
DC three-wire / wire lead-out:
E2G-S08KS01-WP-C1, E2G-S08KS01-WP-C2
E2G-S08KS01-WP-B1, E2G-S08KS01-WP-B2
E2G-M12KS02-WP-C1, E2G-M12KS02-WP-C2
E2G-M12KS02-WP-B1, E2G-M12KS02-WP-B2
E2G-M18KS05-WS-C1, E2G-M18KS05-WS-C2
E2G-M18KS05-WS-B1, E2G-M18KS05-WS-B2
E2G-M30KS10-WS-C1, E2G-M30KS10-WS-C2
E2G-M30KS10-WS-B1, E2G-M30KS10-WS-B2
E2G-S08KN02-WP-C1, E2G-S08KN02-WP-C2
E2G-S08KN02-WP-B1, E2G-S08KN02-WP-B2
E2G-M12KN05-WP-C1, E2G-M12KN05-WP-C2
E2G-M12KN05-WP-B1, E2G-M12KN05-WP-B2
E2G-M18KN10-WS-C1, E2G-M18KN10-WS-C2
E2G-M18KN10-WS-B1, E2G-M18KN10-WS-B2
E2G-M30KN18-WS-C1, E2G-M30KN18-WS-C2
E2G-M30KN18-WS-B1, E2G-M30KN18-WS-B2
DC three-wire / connector type:
E2G-S08KS01-M3-C1, E2G-S08KS01-M3-C2
E2G-S08KS01-M3-B1, E2G-S08KS01-M3-B2
E2G-M12KS02-M1-C1, E2G-M12KS02-M 1-C2
E2G-M12KS02-M1-B1, E2G-M12KS02-M1-B2
E2G-M18KS05-M1-C1, E2G-M18KS05-M1-C2
E2G-M18KS05-M1-B1, E2G-M18KS05-M1-B2
E2G-M30KS10-M1-C1, E2G-M30KS10-M1-C2
E2G-M30KS10-M1-B1, E2G-M30KS10-M1-B2
E2G-S08KN02-M3-C1, E2G-S08KN02-M1-C2
E2G-S08KN02-M3-B1, E2G-S08KN02-M1-B2
E2G-M12KN05-M1-C1, E2G-M12KN05-M1-C2
E2G-M12KN05-M1-B1, E2G-M12KN05-M1-B2
E2G-M18KN10-M1-C1, E2G-M18KN10-M1-C2
E2G-M18KN10-M1-B1, E2G-M18KN10-M1-B2
E2G-M30KN18-M1-C1, E2G-M30KN18-M1-C2
E2G-M30KN18-M1-B1, E2G-M30KN18-M1-B2
