Germany mass flow meter is for low flow measurement

    Germany mass flow meter is for low flow measurement

    Germany mass flow meter

    Germany mass flow meter is for low flow measurement

    • Brand :Germany Krohne

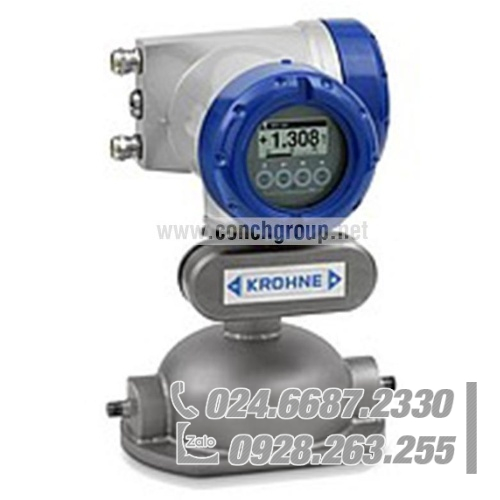

    • Model: mass flowmeter OPTIMASS 3000 for air water oil flow indicator
    • Process temperature:-40 to +150°C
    • Measuring tube material:Stainless Steel 316L
    • Temperature:20°C / 68°F
    • Protection Class: ip67
    • Quality: New and original for mass flow meter.
    • First choice for low flow applications
    • Certified secondary pressure containment
    • A common footprint for all three sizes, in Hastelloy ® or Stainless Steel
    • Measuring system
    • Measuring principle: Coriolis mass flow
    • Application range: Mass flow and density measurement of fluids, gases
    • Measured values: Mass, density, temperature
    • Calculated values: Volume, referred density, concentration, velocity
    • Mass
    • Liquid: ±0.1% of actual measured flow rate + zero stability
    • Gas: ±0.5% of actual measured flow rate + zero stability
    • Repeatability: Better than 0.05% plus zero stability (includes the combined effects of
      repeatability, linearity and hysteresis)
    • Density
    • Accuracy: ±2 kg/m3 / ±0.13 lbs/ft3
    • Measuring range: 400…3000 kg/m3 / 25…187 lbs/ft3
    • On site calibration:±0.5 kg/m3 / ±0.033 lbs/ft3
    • Temperature
    • Accuracy:±1°C / ±1.8°F
    Mã: 1352-10150 Danh mục:

    The OPTIMASS 3000 is the cost effective solution for accurate measurement in a variety of applications, where there is a low process flow. Combined with the power of the MFC 400, the OPTIMASS 3000 will provide accurate measurement of mass, volume, density and concentration.

    1. Highlights:
    • Z-shaped measuring tube
    • Easily drained and easy to clean
    • Optional heating jacket
    • Simple installation and start-up
    • Modular electronics concept – electronics and sensor are easy to replace
    • Data redundancy – accurate plug & play replacement of electronics

    2. Industries:
    • Wastewater
    • Chemical
    • Food & Beverage
    • Paper & pulp
    • Pharmaceutical
    • Automotive

    3. Applications:
    • Fragrance dispensing and high precision coatings in the pharmaceutical industry
    • CO2 injection and dosing in the food and beverage industry
    • Natural gas and propane odorisation
    • Engine test beds in the automotive industry
