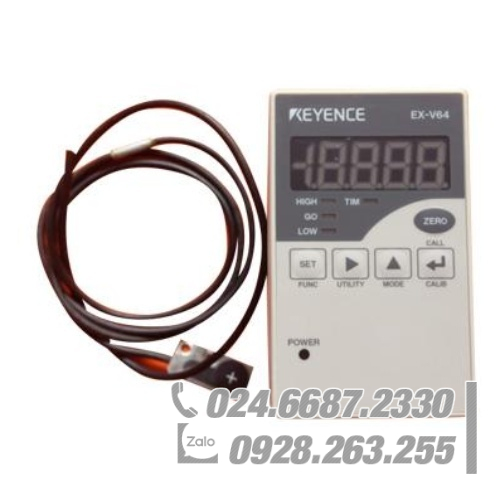

KEYENCE Proximity Sensors EX-V series EX-V64E
| Model | EX-V64E | |||
| Type | Controller | |||
| Shape | 14 x 30 x 4.8 mm 0.55″ x 1.18″ x 0.19″ Thin profile | |||
| Measuring range | 0 to 4 mm 0.16″ | |||
| A/D converting system | Sequential conversion | |||
| Display range | -19,999 to +19,999 | |||
| Linearity | ±0.3% of F.S. | |||
| Resolution (No. of averaging measurements: 64) |
1μm | |||
| Sampling rate | 40,000 samplings max./sec. *1 | |||
| Display speed | 20 times/sec. (2-color, 7-segment LED) | |||
| Display power | 7-segment 2-color LED | |||
| Over-range alarm | ±FFFF is displayed. | |||
| Control input | Timing input | NPN open-collector or non-voltage contact signal | ||
| Reset input | ||||
| Auto-zero input | ||||
| Judgment output: Inhibit input | ||||
| Synchronization/external settings input | ||||
| Control output | Setting method | Upper/lower 2-level setting x 4 patterns (selectable) | ||
| Signal | NPN open-collector (HIGH, GO and LOW): 100 mA max. (40 V max.) | |||
| Response time | 0.075 ms (at maximum speed) | |||
| OFF-delay time | 60 ms (ON/OFF selectable) | |||
| Strobe output | NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max. (N.O.) | |||
| Alarm output | NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max. (N.C.) | |||
| Analog output voltage | Output voltage | ±0.5 V | ||
| Impedance | 100 Ω | |||
| Response time | 0.075 ms (at maximum speed) | |||
| Temperature characteristics | 0.07% of F.S./°C *2 | |||
| Major functions | FLL, digital filter, auto zero, offset, calculation, measurement mode (15 types), judgment value memory (4 sets), decimal point shift, display digit changing, display of various errors, etc. | |||
| Rating | Current consumption. | 240 mA or less | ||
| Power voltage | 24 VDC ±10%, Ripple (P-P): 10% max. | |||
| Environmental resistance | Operating temperature range | 0 to +50°C 32 to 122°F, 35 to 80%RH (no condensation) | ||
| Operating ambient humidity | 35 to 85% RH (No condensation) | |||
| Vibration | 10 to 55 Hz, 1.5 mm 0.06″ double amplitude for 2 hours in each of the X, Y, and Z directions | |||
| Weight | Approx 235 g | |||
